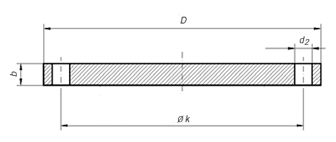

Blind Flanges DIN 2527 PN10
Rated
Diameter |
Flange |
Screws |
Weight of a flange
(7,85 Kg/dm3) |
| D |
b |
k |
Number |
Thread |
d2 |
Shape B |
| Kg |
| 15 |
95 |
14 |
65 |
4 |
M 12 |
14 |
0,72 |
| 20 |
105 |
16 |
75 |
1,01 |
| 25 |
115 |
16 |
85 |
1,23 |
| 32 |
140 |
16 |
100 |
M 16 |
18 |
1,8 |
| 40 |
150 |
16 |
110 |
2,09 |
| 50 |
165 |
18 |
125 |
2,88 |
| 65 |
185 |
18 |
145 |
3,66 |
| 80 |
200 |
20 |
160 |
4,77 |
| 100 |
220 |
20 |
180 |
8 |
5,65 |
| 125 |
250 |
22 |
210 |
8,42 |
| 150 |
285 |
22 |
240 |
M 20 |
22 |
10,4 |
| 200 |
340 |
24 |
295 |
16,5 |
| 250 |
395 |
26 |
350 |
12 |
24 |
| 300 |
445 |
26 |
400 |
30,9 |
| 350 |
505 |
26 |
460 |
16 |
40,6 |
| 400 |
565 |
26 |
515 |
M 24 |
26 |
49,4 |
| 500 |
670 |
28 |
620 |
20 |
75 |
|
