ASTM A234 WP91 Alloy Steel Butt Weld Pipe Fittings – Global Manufacturer, Exporter & Supplier
Dipti Metal Industries is a leading Manufacturer, Stockist, Exporter & Supplier of ASTM A234 WP91 Alloy Steel Butt Weld Pipe Fittings. Based in Mumbai (India), we support refineries, petrochemicals, power/boiler, and EPC projects with certified quality and reliable deliveries. Our WP91 fittings are supplied with EN 10204 3.1 / 3.2 Mill Test Certificates, optional third-party inspections (BV/TUV/LR/SGS), and compliance with IBR • PED • CE • Mill Approvals.
ASTM A234 WP91 Elbows, Tees, Reducers, Caps, Stub Ends, Crosses & Bends are available in Seamless sizes 1/2″–24″ • Welded sizes 1/2″–60″ • Schedules 10–XXS • Conforming to ASME B16.9/B16.28 • Bevel Ends per B16.25.
Product Overview — ASTM A234 WP91 Alloy Steel Butt Weld Pipe Fittings
ASTM A234 WP91 (9Cr-1Mo-V-Nb, P91 family) is a creep-strength-enhanced ferritic alloy steel for high-temperature service. We manufacture elbows, tees, reducers, caps, stub ends, crosses, laterals and bends conforming to ASME B16.9/B16.28, with bevel ends per ASME B16.25.
UNS K91560 | X10CrMoVNb9-1 | EN 1.4903 | ASME B16.9 / B16.28 / B16.25

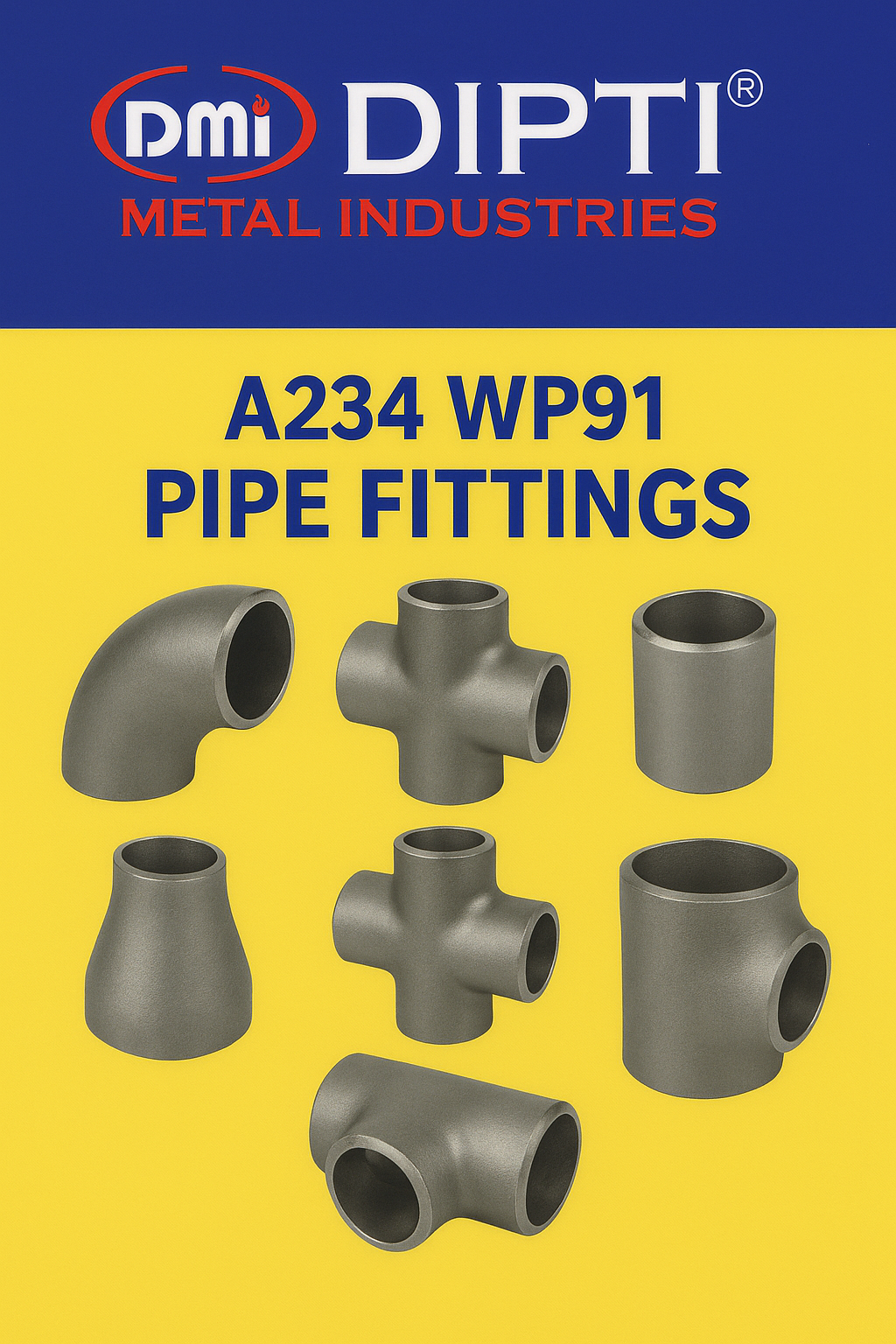

Types of ASTM A234 WP91 Butt Weld Pipe Fittings
- ASTM A234 WP91 Elbows (LR/SR 90°, 45°, 180° returns)
- ASTM A234 WP91 Tees (equal & reducing), Crosses
- ASTM A234 WP91 Reducers (concentric & eccentric)
- ASTM A234 WP91 Caps, Stub Ends (short/long), Laterals
- Specials: fabricated offsets, headers, spools
Mechanical & Chemical Properties — ASTM A234 WP91
Mechanical Properties (Typical/Min. Guidance) — ASTM A234 WP91
| Property | Value |
|---|---|
| Yield Strength (min) | ≥ 275 MPa |
| Tensile Strength | 585–760 MPa |
| Elongation (min) | ≥ 20% |
| Hardness (HB) | ≤ 250 HB |
Chemical Composition (Typical / %) — ASTM A234 WP91
| Element | Percentage Range (%) |
|---|---|
| Carbon (C) | 0.08–0.12 |
| Manganese (Mn) | 0.30–0.60 |
| Silicon (Si) | 0.20–0.50 |
| Phosphorus (P) | ≤ 0.020 |
| Sulfur (S) | ≤ 0.010 |
| Chromium (Cr) | 8.0–9.5 |
| Molybdenum (Mo) | 0.85–1.05 |
| Vanadium (V) | 0.18–0.25 |
| Niobium (Nb) | 0.06–0.10 |
| Nitrogen (N) | 0.03–0.07 |
Note: Values are indicative; final acceptance per current ASTM/ASME and purchase specifications. Heat treatment/PWHT per WP91 requirements.
Quick Specifications — ASTM A234 WP91
- Seamless: NPS 1/2″ – 24″
- Welded: NPS 1/2″ – 60″
- Schedules: Sch 10/20/40/60/80/120/160, XS/XXS
- ASME B16.9 / B16.28
- Bevel ends per ASME B16.25
- EN 10253-2 (on request), MSS SP-43/75/97
- MTC EN 10204 3.1 (3.2 on request)
- NDT: UT/MT/PT • PMI • HIC/SSC (on request)
- IBR • PED • CE • Mill Approvals
Also available in other ASTM A234 grades on request: WP5, WPC, WP11, WP12, WP22. Origins: Indian / European / Japanese / Korean mills.
Supply Range & Options — ASTM A234 WP91
- NPS 1/2″ to 60″ (NB) — Seamless up to 24″, Welded up to 60″
- Sch 10/20/40/60/80/120/160, XS/XXS
- Wall per ASME/ASTM tables or custom
- Bevel ends per ASME B16.25; Plain ends on request
- Fabricated fittings & spools; pickling, shot-blasting, painting
- Coatings per PO/spec
- MTC EN 10204 3.1; Heat no. traceability
- NDT (UT/MT/PT), PMI on request; HIC/SSC per project
- Third-party inspection: BV, TUV, LR, SGS
Applications — ASTM A234 WP91 Alloy Steel Butt Weld Pipe Fittings
ASTM A234 WP91 fittings are designed for highly demanding applications requiring excellent creep resistance and strength at elevated temperatures, often exceeding those suitable for standard carbon steel or lower alloy steels. Key sectors and uses include:
- Power generation plants (superheaters, reheaters, main steam lines)
- Boiler piping systems
- Refineries & petrochemicals (high-temperature sections, heaters)
- Chemical processing plants with high-temperature reactors
- Waste-to-energy facilities
- Heat exchangers and components under creep conditions
- Steam piping for ultra-supercritical power plants
- High-pressure, high-temperature industrial installations
