🔗 Standard: DIN 127 Form A ⚙️ Type: Spring Washer (Bent / Tang Ends) 🏭 Material: SS 304, 316, Inconel, Monel ⚖️ Data: Weight Chart Available

DIN 127A Spring Washers Manufacturer, DIN 127A Spring Washers Supplier & DIN 127A Spring Washers Exporter in India | Bent Ends (Form A) Dimensions & DIN 127A Spring Washers Stockiest

Dipti Metal Industries is the Largest DIN 127A Spring Washers Manufacturer, DIN 127A Spring Washers Supplier, and DIN 127A Spring Washers Exporter of high-quality DIN 127A Spring Washers (Form A) in India. We specialize in Spring Washers with Bent Ends (Tang Ends) which provide superior locking vibration resistance compared to flat-end washers. As a Leading DIN 127A Stockiest and DIN 127A Spring Washers Distributor in Mumbai, we supply these washers in Stainless SteelDIN 127A Spring Washers (304 DIN 127A Spring Washers, 316 DIN 127A Spring Washers), Carbon Steel DIN 127A Spring Washers, and Exotic Alloys DIN 127A Spring Washers. As a Top DIN 127A Spring Washers Dealer and Biggest DIN 127A Spring Washers Supplier in Mumbai, we offer DIN 127A Spring Washers wholesale prices on DIN 127A Washers from M2 to M36 sizes, ensuring high-integrity fastening solutions for global industries.

Request Quote WhatsApp Sales Leading Manufacturer in India View Weight Chart

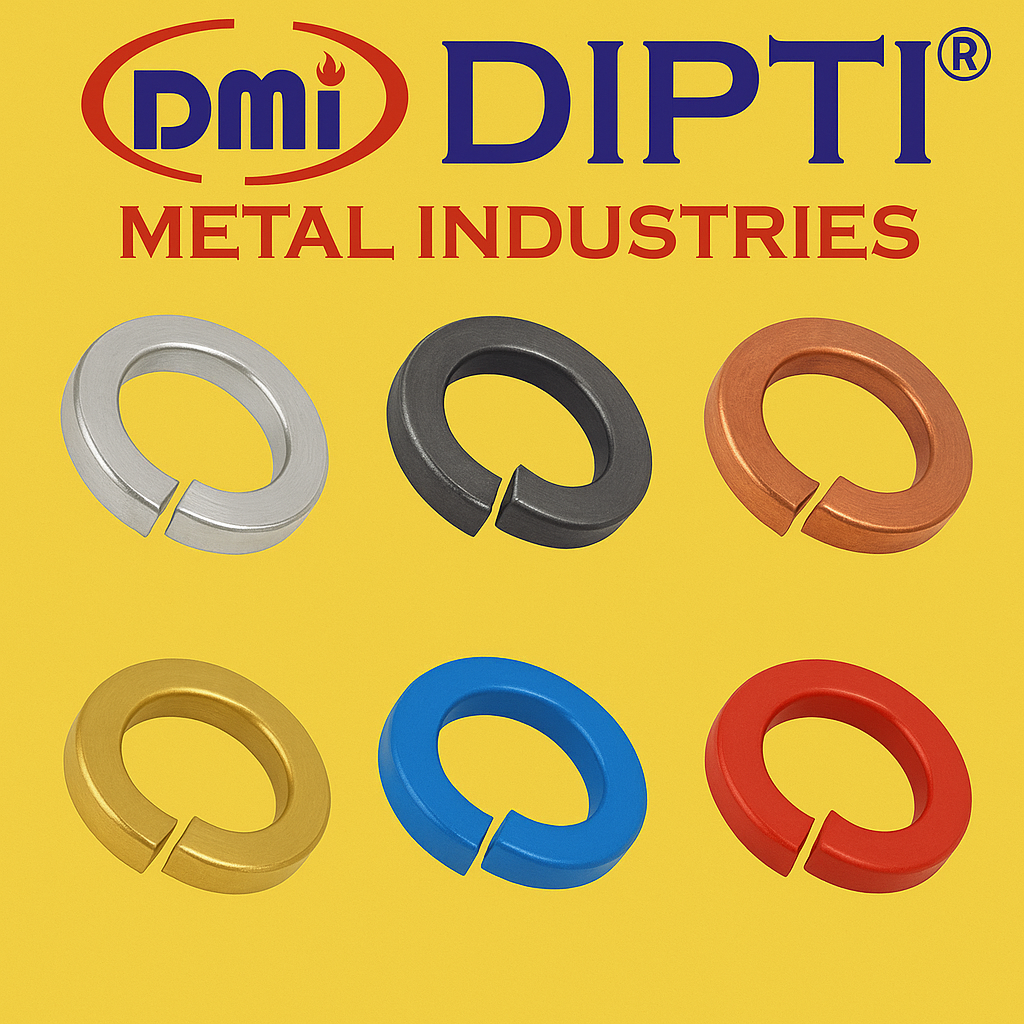

DIN 127A Spring Washers Bent Ends Manufacturer Exporter Supplier in Mumbai India
DIN 127A Dimensions DIN 127A Weight Chart DIN 127A Standards DIN 127A Materials DIN 127A Spring Washers Export Countries DIN 127A Spring Washers Contact / Map Get a Quote for DIN 127A Spring Washers

DIN 127A Dimensions Chart (Single Coil SQUARE Section - Form A)

Standard Metric Dimensions for DIN 127 Form A / DIN 7980 / BS 4464 Type A - Manufacturer in India.

Nominal Bolt Size (mm) Inside Diameter Min (mm) Inside Diameter Max (mm) Width = Thickness (B = S) (mm) Outside Diam (max) D (mm)
2.02.12.30.8 ± 0.054.0
2.32.42.60.8 ± 0.054.3
2.62.72.90.8 ± 0.054.6
3.03.13.31.0 ± 0.15.5
3.53.63.81.0 ± 0.16.0
44.14.351.2 ± 0.16.95
55.15.351.5 ± 0.18.55
66.16.41.5 ± 0.19.6
88.28.552 ± 0.112.75
1010.210.62.5 ± 0.1515.9
1212.212.62.5 ± 0.1517.9
1414.214.73 ± 0.221.1
1616.316.93.5 ± 0.224.3
1818.319.03.5 ± 0.226.4
2020.321.14.5 ± 0.230.5
2222.423.34.5 ± 0.232.7
2424.425.35 ± 0.235.7
2727.528.55 ± 0.238.9
3030.531.56 ± 0.243.9
3333.534.66 ± 0.247.0
3636.537.67 ± 0.2552.1

* Note: We are a DIN 127A Manufacturer capable of producing custom sizes upon request.

DIN 127A Washers Weight Chart

Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations. Provided by Dipti Metal Industries.

Size (Nominal) Weight (kgs / 1000 pcs)
DIN 127A M 20.033
DIN 127A M 2.50.053
DIN 127A M 30.11
DIN 127A M 3.50.12
DIN 127A M 40.18
DIN 127A M 50.36
DIN 127A M 60.83
DIN 127A M 81.60
DIN 127A M 102.53
DIN 127A M 123.82
DIN 127A M 146.01
DIN 127A M 168.91
DIN 127A M 189.73
DIN 127A M 2015.2
DIN 127A M 2216.5
DIN 127A M 2426.2
DIN 127A M 2728.7
DIN 127A M 3044.3
DIN 127A M 3667.3
DIN 127A M 42111
DIN 127A M 48123

DIN 127A Equivalent Standards

Dipti Metal Industries, the Largest DIN 127A Manufacturer, supplies washers compatible with international standards. Cross-reference chart below:

Region / CountryStandard BodyEquivalent StandardDescription
Germany / EuropeDINDIN 127 ASpring lock washers with bent ends (tang).
IndiaISIS 3063Single Coil Rectangular Section Spring Washers.
USA / ANSIASME/ANSIASME B18.21.1Helical Spring Lock Washers.
United KingdomBSBS 4464 Type ASpring washers for general engineering.
JapanJISJIS B 1251Spring lock washers.

Material Grades for DIN 127A Washers

We are a Leading Stockiest and Dealer supplying DIN 127A in the following grades:

GradeUNSW.Nr.
DIN 127A SS 304S30400 DIN 127A Spring Washers1.4301 DIN 127A Spring Washers
DIN 127A SS 304LS30403 DIN 127A Spring Washers1.4306 DIN 127A Spring Washers
DIN 127A SS 316S31600 DIN 127A Spring Washers1.4401 DIN 127A Spring Washers
DIN 127A SS 316LS31603 DIN 127A Spring Washers1.4404 DIN 127A Spring Washers
DIN 127A SS 316TiS31635 DIN 127A Spring Washers1.4571 DIN 127A Spring Washers
DIN 127A SS 310SS31008 DIN 127A Spring Washers1.4845 DIN 127A Spring Washers
DIN 127A 17-4 PHS17400 DIN 127A Spring Washers1.4542 DIN 127A Spring Washers
GradeUNSDescription
DIN 127A Monel 400N04400 DIN 127A Spring WashersFor marine applications.
DIN 127A Inconel 625N06625 DIN 127A Spring WashersFor high temp & corrosion.
DIN 127A Inconel 718N07718 DIN 127A Spring WashersHigh strength aerospace grade.
DIN 127A Hastelloy C276N10276 DIN 127A Spring WashersChemical processing.
DIN 127A Titanium Gr 2R50400 DIN 127A Spring WashersLightweight & bio-compatible.
