📘 Product Overview: API 6A Type 6BX (10000 PSI / 69.0 MPa)
The API 6A Type 6BX connection at 10000 PSI (69.0 MPa) represents the pinnacle of high-pressure flanging technology in the oil and gas industry. The design is explicitly bolt-preloaded to lock the Type BX Ring Gasket in place, leveraging the metal-to-metal contact to resist extreme hydrostatic pressure and fatigue-inducing bending loads common in HPHT and deepwater drilling. Both Weld Neck (for permanent piping) and Blind Flanges (for sealing) are supplied in this critical Type 6BX configuration.
API 6A & ISO 10423 Standard Specifications
| Parameter | Specification |
|---|---|
| Design Standard | API Spec 6A (and ISO 10423) |
| Flange Type | Type 6BX (Weld Neck & Blind) |
| Max Working Pressure | 10000 PSI (69.0 MPa) |
| Sealing Face | Ring Type Joint (RTJ) - Uses BX Series Gaskets |
| Key Feature | Bolt Preloaded - Superior fatigue and load resistance |
| Product Spec. Levels | PSL 1, PSL 2, PSL 3, PSL 4 |
We supply flanges in material classes DD, EE, FF and temperature ratings from L, P, R, S, T, U, V, X, and Y as per API 6A.
Common Forged Material Grades Supplied
| Application | ASTM / ASME Grade |
|---|---|
| Carbon Steel | ASTM A105 / A105N, A350 LF2 |
| Low Alloy Steel | ASTM A182 F5, F11, F22 |
| Stainless Steel | ASTM A182 F304, F316 |
| Duplex & Super Duplex | ASTM A182 F51, F53, F55 |
All materials can be supplied with NACE MR0175 / ISO 15156 compliance for sour service.

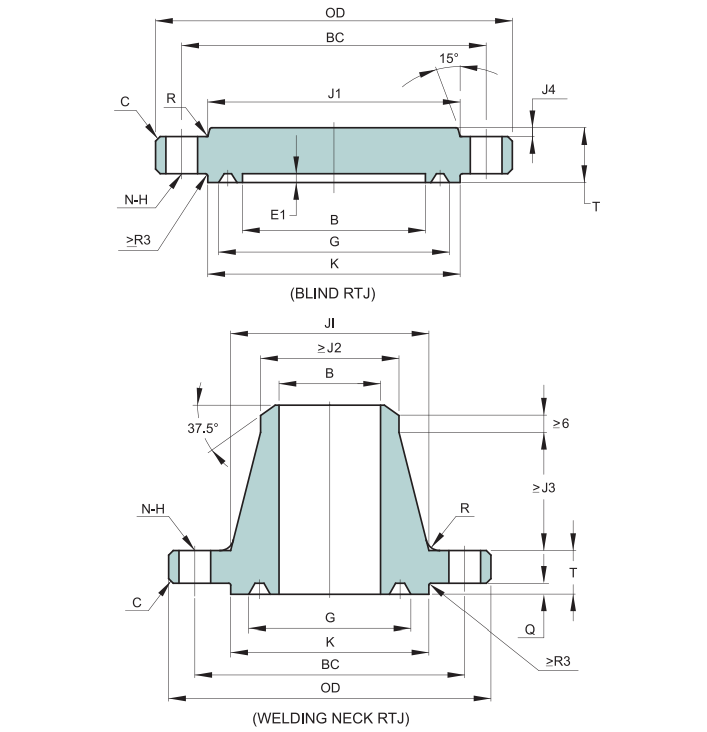

API 6A Type 6BX 10000 PSI Ring Joint Gasket Groove Dimensions (WELDING NECK RTJ - BX)
The table below provides the essential dimensions for the BX Ring Joint Gasket Groove for API 6A Type 6BX 10000 PSI Weld Neck Flanges, specified in mm. This data applies to both Weld Neck and Blind Flange RTJ faces.
| Size | B | OD | C | E1 | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number BX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 13/16" | 46.8 | 185 | 3 | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | - | 10 | 146.10 | 8 | 23 | 151 |
| 2 1/16" | 53.2 | 200 | 3 | 5.95 | 86.23 | 111 | 44.1 | 100.0 | 74.7 | 51.6 | - | 10 | 158.80 | 8 | 23 | 152 |
| 2 9/16" | 65.9 | 230 | 3 | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | - | 10 | 184.20 | 8 | 26 | 153 |
| 3 1/16" | 78.6 | 270 | 3 | 7.54 | 119.00 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | - | 10 | 215.90 | 8 | 29 | 154 |
| 4 1/16" | 104.0 | 315 | 3 | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | - | 10 | 258.80 | 8 | 32 | 155 |
| 5 1/8" | 131.0 | 360 | 3 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81.0 | 6.4 | 10 | 300.00 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254.0 | 95.3 | 9.7 | 16 | 403.20 | 12 | 42 | 156 |
| 9" | 229.4 | 550 | 6 | 12.70 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.30 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.20 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.10 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.30 | 24 | 51 | 162 |
| 18 3/4" | 477.0 | 1040 | 6 | 18.26 | 577.90 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.50 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 605.67 | 788 | 241.3 | 847.7 | 762.0 | 165.1 | 31.8 | 21 | 1022.40 | 24 | 67 | 166 |
UNIT: mm. Dimensions are for the Ring Groove based on API 6A Table 5.10.
NOTE 1) TOLERANCE ACCORDING TO API 6A - 20TH
NOTE 2) RING GASKET ACCORDING TO API 6A-20TH
API 6A Type 6BX 10000 PSI Flange & Connection Product Range (Weld Neck & Blind)
We supply the full range of components designed and manufactured strictly to API 6A, 10000 PSI Type 6BX standards for ultra-high pressure applications in oilfield and drilling operations.
- API 6A Type 6BX Weld Neck Flanges (Available from 1 13/16" to 21 1/4" bore sizes) (Weld Neck Flange Category)
- API 6A Type 6BX Blind Flanges (For sealing ends of wellhead equipment/BOP) (Blind Flange Category)
- API BX Series Ring Gaskets (BX151 to BX166) - Mandatory for 6BX connection
- High-Tensile Bolting (ASTM A193 B7M, A320 L7M, with A194 Nuts) - NACE-compliant grades are standard
- Flange Adapters and Transition Spools (e.g., 10K to 5K or other standards)
Key Applications for API 6A Type 6BX 10000 PSI Flanges
The 6BX design at 10000 PSI is exclusively reserved for severe, critical, and ultra-high pressure applications where failure is unacceptable.
- Ultra-High Pressure (UHP) Wellhead Assemblies: Primary connectors for surface control equipment in deep drilling and HPHT wells.
- Blowout Preventer (BOP) Stacks: Used as the main flange connections on BOPs and intermediate spool connections.
- Christmas Trees: High-pressure valves and chokes used in the main production stream.
- Downhole Tool Hangers/Test Spools: Components that require superior sealing integrity during drilling and well intervention.
Global Distribution Network for API 6A Flanges
As a global API 6A Flange Exporter and Supplier, Dipti Metal Industries specializes in the delivery of certified, high-pressure components for the most demanding oil and gas and energy projects worldwide.
