Leading EN 1092-1 PN 160 Flange Manufacturer, PN 160 Flanges Supplier & PN 160 Flanges Exporter (16.0 MPa) in Mumbai, India

Dipti Metal Industries is a Leading global EN 1092-1 Flange Manufacturer, EN 1092-1 PN 160 Flanges Supplier & EN 1092-1 PN 160 Flanges Exporter of flanges conforming to the European Standard EN 1092-1 in the PN 160 pressure rating (16.0 MPa / ~2320 PSI). PN 160 is a critical high-pressure rating, comparable to ASME Class 900, and is essential for severe steam headers, high-pressure utility lines, and demanding process applications. We supply key flange types, including Type 05 Blind, Type 11 Weld Neck, and Type 21 Integral flanges, in a comprehensive size range from DN10 up to DN300 (with mating dimensions for larger sizes available). We ensure material traceability and dimensional compliance for seamless integration into European and global piping networks. Our materials are sourced from the EN 10222 forging standard, guaranteeing certified performance.

Request a Quote for EN 1092-1 PN 160 Flanges WhatsApp Sales Flange Types 05, 11 (Weld Neck, Blind) Available Wide Range of Materials: EN 10222-2, 3, 4, 5 Forging Steels

🏭 About Dipti Metal Industries — Your EN 1092-1 PN 160 Partner

Founded in 2009 in Mumbai, India, we are a global EN 1092-1 Flange Manufacturer and PN 160 Flange Exporter specializing in certified high-pressure flanges for international markets. Our manufacturing process guarantees that our PN 160 flanges adhere strictly to the dimensions, facing, and tolerances specified in the EN 1092-1 standard. We focus on efficiently supplying projects requiring large quantities of PN 160 flanges, covering the full DN range and ensuring all forgings are procured and certified to the comprehensive EN 10222 material specification.

📘 Standard Overview: EN 1092-1 PN 160

The EN 1092-1 standard is the primary specification for circular steel flanges for piping in Europe. PN 160 (Nominal Pressure 160 Bar) is a critical high-pressure rating, comparable to ASME Class 900, making it essential for sectors like power generation (superheated steam), petrochemical processing, and high-pressure oil and gas applications. The standard specifies very robust, heavy-duty dimensions and precise bolting to handle extreme pressure and temperature loads.

completo EN 10222 Forging Steel Grades List Supplied

This comprehensive list details the various EN 10222 grades we supply and manufacture into PN 160 Flanges and other pressure components. All are sourced with certified EN 10204 3.1 documents.

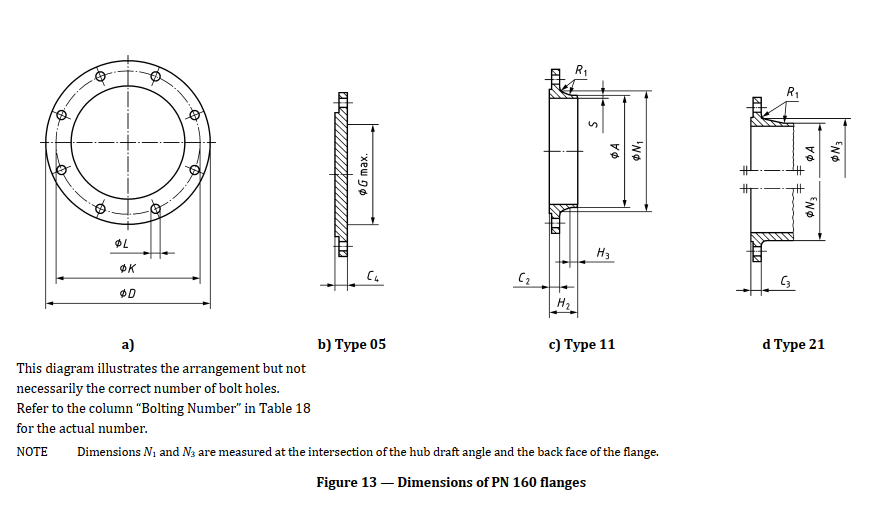

EN 1092-1 PN 160 Flange Mating Dimensions (DN10 - DN300)

The following table outlines the essential mating dimensions (in mm) for EN 1092-1 PN 160 Flanges, including the Outside Diameter (D), Bolt Circle Diameter (K), and Bolting details, critical for interchangeable assembly of Type 05, 11, and 21 flanges.

UNIT: mm. Data extracted from EN 1092-1 Table 18, focusing on the PN 160 Mating Dimensions (D, K, L, N, Size).
Dimensions apply across all applicable flange types (05, 11, 21) for PN 160.

EN 1092-1 PN 160 Flange Types & Product Range Supplied

We manufacture the primary flange types mandated by EN 1092-1 in the PN 160 pressure class, utilizing certified EN 10222 forging grades to ensure full interoperability for high-pressure European systems.

Key Applications for EN 1092-1 PN 160 Flanges

The PN 160 class is essential for high-pressure industrial and process applications, often serving as the primary flange rating in critical plant construction and power systems.

• Power Generation: High-pressure steam headers, boiler drum connections, and turbine auxiliary systems (comparable to ASME Class 900).
• Oil & Gas Processing: High-pressure pipelines, separators, and manifolds.
• Chemical & Petrochemical: Critical process lines requiring robust flange connections due to extreme pressure/temperature.
• Industrial Utilities: High-pressure compressed gas storage and distribution.
• Hydraulics: Flanged connections on heavy industrial hydraulic systems.

Global Distribution Network for EN 1092-1 PN 160 Flanges

As a global EN 1092-1 Flange Exporter and Supplier, Dipti Metal Industries efficiently services European and international projects requiring large volumes of PN 160 flanges for demanding industrial installations.

Major Markets Served by Our EN 1092-1 Exporter Network

Why Procure Your EN 1092-1 PN 160 Flanges from Dipti Metal Industries?

• EN Standard Compliance: Guaranteed dimensional compliance with EN 1092-1:2018 for seamless integration into European piping systems.
• PN 160 Stock Range: Ready inventory of all required types (05, 11, 21) within the PN 160 rating, from DN10 up to DN300.
• ASME Equivalent: Flanges functionally comparable to ASME Class 900, offering versatility for international high-pressure projects.
• Material Versatility: Direct sourcing and full traceability on EN 10222 forging grades, ensuring the correct material properties (Creep, Low-Temp, Stainless) for the PN 160 application.

Request a Custom Quote for EN 1092-1 PN 160 Flanges

Contact Dipti Metal Industries today for certified EN 1092-1 PN 160 Flanges of all types (05, 11, 21, etc.). Provide your required Flange Type, Nominal Size (DN), and Material (e.g., P250GH or 1.4404) for a competitive, customized quote and expert technical support.
