Slip-On Flanges (SO, RF, RTJ) - Premier Global Manufacturer, Largest Stockist, Top Supplier & Worldwide Exporter (Carbon, Stainless Steel, Alloy, Duplex, Nickel Alloys)

Introduction to Dipti Metal Industries' Leadership in Slip-On Flanges Manufacturing & Supply

DIPTI METAL INDUSTRIES proudly operates as a leading global Slip-On Flanges manufacturer, stockist, top Slip-On Flanges supplier, leading Slip-On Flanges dealer, premier Slip-On Flanges distributor, and best Slip-On Flanges Exporter of premium Slip-On Flanges (SO). These flanges are easily recognized by their slightly larger inner diameter than the pipe's outer diameter, allowing the pipe to be "slipped on" before welding. This design simplifies alignment, making them a popular choice for many industrial applications.

The Importance and Benefits of Using Slip-On Flanges:

• Cost-Effectiveness: Generally less expensive to purchase than Weld Neck flanges due to simpler manufacturing.
• Ease of Installation: The larger bore allows for quick and easy alignment with the pipe, significantly reducing installation time and precision requirements compared to butt-weld connections.
• Reduced Fabrication Costs: Less accurate pipe cutting is required, further contributing to overall cost savings during fabrication.
• Reliable Performance: Despite their ease of installation, Slip-On flanges provide robust and reliable connections for low-to-medium pressure systems, typically secured by two fillet welds (one inside and one outside).
• Versatility: Suitable for a wide range of applications where tight alignment tolerances of butt-welding are not strictly necessary, such as cooling water lines, fire water systems, and general utility piping.
• Broad Material & Pressure Range: Available in a comprehensive array of materials and pressure classes to match diverse fluid, temperature, and corrosion requirements.

Our high-quality Slip-On Flanges are specifically engineered, manufactured, stocked, and supplied for creating efficient and reliable connections in oil & gas, petrochemical, power generation, marine, and diverse process industries. As a leading global manufacturer and exporter, we are dedicated to providing excellent products with prompt and efficient service, solidifying our reputation as a trusted manufacturing and trading partner for Slip-On flanges. We offer an extensive and comprehensive range of slip-on flanges that we produce to be fit for purpose, delivering top value and excellent performance.

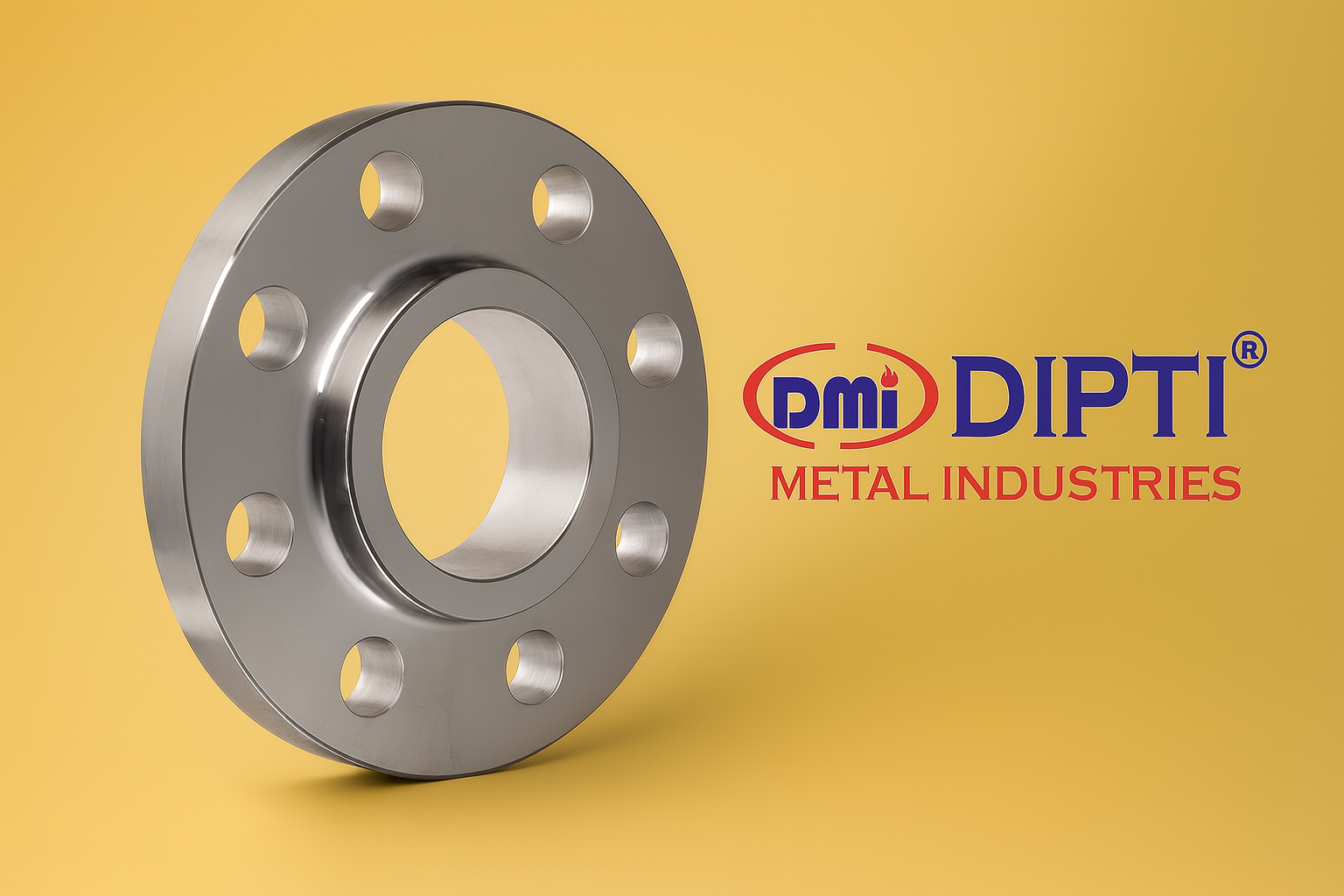

Product Overview: Slip-On Flanges (SO, RF, RTJ) - Versatile Piping Connections

Slip-On Flanges are widely used in various industries for connecting piping systems due to their ease of installation and cost-effectiveness. Dipti Metal Industries, as a leading global manufacturer, stockist, and supplier, offers a comprehensive range of premium Slip-On flanges. We ensure excellent quality and compliance for a wide variety of piping applications worldwide. We are a leading provider of these essential components for efficient pipeline construction, backed by our manufacturing expertise.

Functionality:

A Slip-On Flange (SO) slides over the pipe and is then welded to the pipe with two fillet welds, one on the inside and one on the outside of the flange. This double-welded connection ensures strength and leak prevention, making them a reliable choice for many industrial piping systems. Our manufacturing process ensures optimal thickness and bore for efficient welding and proper pipe fitment.

Key Applications:

• Low-to-medium pressure process lines.
• Cooling water lines, fire water systems, and utility piping.
• Applications requiring frequent dismantling for inspection or maintenance.
• General fabrication where ease of alignment is beneficial.
• Skid-mounted equipment and modular plants.

Standards Compliance:

Our Slip-On flanges are manufactured and supplied in strict accordance with:

• ASME B16.5: Covers sizes from NPS ½ to NPS 24 inches.
• ASME B16.47 Series A & Series B: Covers large diameter steel flanges from NPS 26 through NPS 60 and larger.

Adherence to these standards ensures dimensional interchangeability, pressure integrity, and material quality, making us a top global manufacturer and supplier.

Facing Types Available:

Slip-On flanges are commonly supplied with specific facing types to ensure optimal sealing. We precision manufacture these facings:

• Raised Face (RF) Slip-On Flanges:

  Description: The gasket surface is raised above the bolting circle face. This is the most common facing type for Slip-On flanges.

  Usage: Designed to concentrate the compressive load on a smaller gasket area, increasing the joint's ability to contain pressure. Used with various non-metallic and metallic gaskets.

  Applications: Widely used across almost all industries for general and medium-pressure service.

• Ring Type Joint (RTJ) Slip-On Flanges:

  Description: Features a machined groove into which a metallic ring gasket (oval or octagonal cross-section) is fitted. We precision machine these grooves.

  Usage: Provides a metal-to-metal seal, creating a very strong, leak-proof connection. Ideal for high-pressure, high-temperature, and critical sealing requirements.

  Applications: Heavily used in oil & gas, petrochemical, and power generation industries. Considered a premium choice for extreme conditions.

We provide the best facing options for your diverse sealing needs globally. Dipti Metal Industries offers an extensive and excellent selection of Slip-On flanges, manufactured to high standards, making us a top choice for dependable and versatile piping connection solutions across all critical industries worldwide. We are a reliable and comprehensive global manufacturer and supplier.

Slip-On Flanges: Comprehensive Grades & International Equivalents, Manufactured & Stocked by Dipti Metal Industries

As a leading global manufacturer, stockist, and exporter, Dipti Metal Industries offers an extensive and comprehensive range of Slip-On flanges in various material grades. Our large inventory, strongly supported by our manufacturing processes, ensures we provide excellent material for every demanding application, making us a trusted trading partner worldwide. We maintain a substantial stock of all key grades and their international equivalents for reliable supply of SO Flanges.

This table provides a snapshot of commonly stocked and manufactured grades for Slip-On flanges. Dipti Metal Industries maintains a comprehensive inventory and can manufacture and supply Slip-On flanges in other exotic and specialized materials upon request, solidifying our position as a leading global manufacturer and supplier for all your flange material needs.

Slip-On Flanges: Pressure Classes & Facing Types for Optimal Sealing, Manufactured by Dipti Metal Industries

Dipti Metal Industries, as a leading global manufacturer, stockist, and supplier, offers a comprehensive range of Slip-On flanges across all standard ASME and EN pressure classes and facing types. Our commitment to quality ensures excellent sealing integrity and performance for every critical application worldwide, leveraging our manufacturing expertise. We are a major manufacturer and dealer of Slip-On flanges designed for diverse operational requirements.

Pressure Classes (ASME B16.5 & B16.47):

The pressure class of a Slip-On flange indicates its maximum allowable working pressure at specified temperatures. We manufacture and stock an extensive range to suit varied industrial demands:

• Class 150# (PN10 / PN16): Suitable for low-pressure applications, general service, and utilities where Slip-On Flanges are commonly used.
• Class 300# (PN25 / PN40): Common for medium-pressure applications in process piping, offering a balance of performance and cost.
• Class 400# (PN64): Less common, typically used for specific process applications.
• Class 600# (PN100): For higher-pressure services in oil & gas, petrochemical.
• Class 900# (PN150): High-pressure applications, often in power generation and steam lines.
• Class 1500# (PN250): Very high-pressure services, critical for severe applications.
• Class 2500# (PN420): Extremely high-pressure applications, demanding maximum integrity.

Dipti Metal Industries offers an extensive selection of Slip-On flanges, manufactured by us or sourced, for all these pressure ratings, ensuring we meet the substantial demands of critical projects globally. Our range is dependable and excellent quality.

Flange Facing Types for Slip-On Flanges, Precision Manufactured:

The flange facing is crucial for establishing a secure, leak-proof seal with the gasket. We manufacture and supply Slip-On flanges with the most common and effective facing types, ensuring precision engineering, vital for their superior performance:

• Raised Face (RF) Slip-On Flanges:

  Description: The gasket surface is raised above the bolting circle face. This is the most common facing type for Slip-On flanges.

  Usage: Designed to concentrate the compressive load on a smaller gasket area, increasing the joint's ability to contain pressure. Used with various non-metallic and metallic gaskets.

  Applications: Widely used across almost all industries for general and medium-pressure service, offering cost-effective piping connections.

• Ring Type Joint (RTJ) Slip-On Flanges:

  Description: Features a machined groove into which a metallic ring gasket (oval or octagonal cross-section) is fitted. We precision machine these grooves.

  Usage: Provides a metal-to-metal seal, creating a very strong, leak-proof connection. Ideal for high-pressure, high-temperature, and critical sealing requirements.

  Applications: Heavily used in oil & gas, petrochemical, and power generation industries. Considered a premium choice for extreme conditions.

Our comprehensive stock includes Slip-On flanges, both manufactured by us and sourced, with these facing types, ensuring Dipti Metal Industries is a primary source for optimal sealing solutions in piping systems worldwide. We are a top global manufacturer and exporter of diverse Slip-On flange solutions.

Slip-On Flanges: Precision Manufacturing, Dimensions & Strict Tolerances (ASME B16.5 & B16.47)

Dipti Metal Industries, as a leading global manufacturer, stockist, and supplier, ensures that our premium Slip-On flanges meet precise dimensional specifications and strict tolerances through advanced manufacturing processes. This commitment guarantees optimal fit, reliable assembly, and exceptional performance for diverse industrial applications worldwide. We provide a wide variety, predominantly manufactured in-house, to suit every project need, making us a primary choice for accuracy and dependability for SO Flanges.

Dimensional Adherence:

All our Slip-On flanges are manufactured and supplied in strict accordance with the latest editions of ASME B16.5 and ASME B16.47. Our manufacturing process meticulously adheres to details such as:

• Outside Diameter (OD) of Flange: Critical for spatial fitment and compatibility.
• Bolt Circle Diameter (BCD) & Number/Size of Bolts: Ensures proper mating with corresponding flanges and equipment.
• Thickness of Flange: Essential for pressure containment and structural integrity.
• Facing Dimensions (RF height, RTJ groove details): Guarantees effective gasket seating and sealing.
• Bore Diameter: Crucial for fitting over the pipe and enabling efficient fillet welding.

Tolerances:

ASME B16.5 and B16.47 specify tight dimensional tolerances to ensure interchangeability and proper alignment during installation. Our in-house manufacturing process is designed to meet or exceed these stringent requirements.

Our rigorous Quality Assurance (QA) processes, applied during and after manufacturing, include precise dimensional inspection, ensuring that every Slip-On flange meets or exceeds these stringent requirements. We deliver excellent precision directly from our manufacturing line.

Nominal Pipe Size (NPS) Range:

• ASME B16.5 Slip-On Flanges: From NPS ½ inch up to NPS 24 inches.
• ASME B16.47 Slip-On Flanges: From NPS 26 inches up to NPS 60 inches and larger custom sizes, addressing large diameter piping needs.

Our commitment to precise dimensions and strict tolerances, backed by robust manufacturing capabilities, establishes Dipti Metal Industries as a global leader in manufacturing and supplying Slip-On flanges, providing comprehensive and dependable solutions for large-scale critical projects worldwide.

Slip-On Flanges: Rigorous In-house Testing & Comprehensive Certification

Dipti Metal Industries, as a leading global manufacturer, stockist, and exporter, ensures that all our premium Slip-On flanges undergo rigorous in-house testing and are supplied with comprehensive certifications. This commitment guarantees excellent quality, full material traceability, and unparalleled reliability for critical applications worldwide. We are a preferred choice for projects demanding the highest standards of verification for our manufactured products.

Positive Material Identification (PMI):

We conduct PMI testing using state-of-the-art handheld spectrometers for all incoming raw materials and outgoing manufactured Slip-On flanges. This verifies the correct alloy composition of each flange, preventing material mix-ups and ensuring grade accuracy throughout our manufacturing process.

This process is critical for maintaining material integrity, especially for stainless, duplex, and alloy steel flanges. We ensure complete material verification for all our manufactured products for clients globally.

Non-Destructive Testing (NDT):

Various NDT methods are applied to our manufactured Slip-On flanges as per specific project requirements and international codes:

• Ultrasonic Testing (UT): To detect internal discontinuities within the material, ensuring the integrity of our manufactured product.
• Magnetic Particle Testing (MPT) / Liquid Penetrant Testing (LPT): To detect surface and near-surface discontinuities on our flanges, critical for flange body and sealing surfaces.
• Hydrostatic Testing: To verify the pressure-retaining capability of the Slip-On flange, crucial for its function as a connection, manufactured by us.

Mechanical Testing:

Includes tensile tests, hardness tests, and impact tests (e.g., Charpy V-notch for low-temperature service as per ASTM A350 LF2 equivalent materials), performed on our manufactured Slip-On flange material to ensure it meets specified mechanical property requirements.

Corrosion Testing:

For corrosion-resistant alloy Slip-On flanges (e.g., stainless steels, nickel alloys) that we manufacture, specific tests like intergranular corrosion tests (e.g., ASTM A262) or pitting/crevice corrosion tests (e.g., ASTM G48) are performed to confirm resistance to aggressive environments, including those requiring NACE compliance.

Certification & Documentation:

• All our manufactured Slip-On flanges are supplied with full Mill Test Certificates (MTCs) conforming to EN 10204 Type 3.1 and 3.2. This is crucial for international projects and reflects our commitment as a manufacturer.
• Type 3.1: Certified by our manufacturer's authorized inspection representative, confirming compliance with order requirements.
• Type 3.2: Independently verified by an authorized third-party inspection (TPI) agency (e.g., TÜV, Lloyd's Register, DNV, ABS), providing additional assurance for critical applications for our manufactured products.

Our entire supply chain and quality management systems are ISO 9001 certified, guaranteeing consistent quality control and documented processes throughout our manufacturing operations.

This rigorous testing and comprehensive certification process, integral to our manufacturing, reinforces Dipti Metal Industries as a highly reliable global manufacturer and supplier of Slip-On flanges, instilling full confidence for large-scale critical projects worldwide.

Applications of Dipti Metal Industries' Premier Slip-On Flanges (Manufactured and Supplied)

Dipti Metal Industries' diverse and comprehensive range of Slip-On Flanges (SO, RF, RTJ), which we both manufacture and supply, are essential piping components across numerous critical industries worldwide. As a leading global manufacturer, stockist, supplier, and exporter, we facilitate the creation of robust, precise, and high-performance pipeline systems demanding superior pressure containment, reliable sealing integrity, and corrosion resistance for efficient fluid transfer. Our excellent Slip-On flanges, produced with our manufacturing expertise, are integral to countless industrial applications, solidifying our position as a key international manufacturing and trading partner for SO Flanges.

• Oil & Gas Industry: Used in lower pressure sections of refineries, storage facilities, and utility lines on offshore platforms where ease of assembly and cost-effectiveness are valued.
• Petrochemical & Chemical Plants: Applied in non-critical process lines, chemical storage, and utility systems where moderate pressures and temperatures allow for easier installation methods.
• Power Generation: Employed in cooling water systems, auxiliary lines, and non-main steam applications to facilitate maintenance and construction.
• Marine & Shipbuilding: Essential for various piping systems on vessels and marine structures, especially for water and low-pressure fuel lines, offering flexible installation.
• Water Treatment & Desalination: Utilized in municipal and industrial water plants for various pipeline connections where isolation and maintenance access are common.
• Fire Protection Systems: Commonly used in fire water lines and sprinkler systems due to their quick installation and secure connection properties.
• General Fabrication & Utilities: Versatile for a wide array of industrial utility services, including air, inert gas, and non-hazardous liquid lines, where robust yet easily assembled connections are needed.

Our ability to manufacture and supply a wide variety of high-quality Slip-On flanges for these diverse and critical applications establishes Dipti Metal Industries as a global leader in the worldwide piping components market, providing comprehensive and dependable solutions.

Global Export Network: Worldwide Distributor & Exporter of Slip-On Flanges

DIPTI METAL INDUSTRIES is a proud Worldwide Manufacturer, Exporter, Global Supplier, Leading Dealer, and Major Stockist of Slip-On Flanges, operating with an extensive network. We ensure timely and compliant delivery of our premium products, manufactured in our facilities, to major industrial hubs across the globe, with a strong focus on critical industrial regions worldwide, solidifying our position as a key international manufacturing and trading partner. Our global reach extends to over 190 countries worldwide, offering reliable solutions globally. The countries and cities listed below highlight our established key markets and are illustrative of our truly global reach for SO Flanges.

Explore Our Global Reach (Illustrative Markets)

Why Choose Dipti Metal Industries for Your Slip-On Flanges Needs? Your Global Advantage

• Extensive Global Manufacturing & Supply Network: As a leading global Slip-On Flanges manufacturer, stockist, top Slip-On Flanges supplier, leading Slip-On Flanges dealer, and major Slip-On Flanges exporter of premium Slip-On flanges, Dipti Metal Industries ensures unparalleled access to a vast, comprehensive inventory. Much of this inventory is produced in-house, enabling us to offer the most diverse range of premium Slip-On flanges, guaranteeing availability for your large-scale projects worldwide. We are a reliable and leading manufacturing and trading partner for SO Flanges.
• Unrivaled In-house Expertise & Quality Assurance: Dipti Metal Industries adheres to ISO 9001 certified processes across our entire manufacturing and supply chain. We meticulously ensure all products, both manufactured by us and procured from trusted, certified mills globally, provide rigorous QA and full material traceability with EN 10204 3.1/3.2 MTCs and PMI testing. This guarantees every Slip-On flange meets stringent international standards (ASME B16.5 & B16.47, ASTM, EN, DIN, JIS) for superior integrity and reliability, positioning us as a leader in manufacturing quality assurance.
• Precision Manufacturing for Efficient Connections: Our advanced manufacturing processes are specifically geared towards producing Slip-On Flanges with exceptionally precise dimensions and optimal bore for easy pipe insertion and welding. This precision is paramount for ensuring efficient and reliable pipe connections. Our commitment to exacting manufacturing standards makes us a preferred choice for cost-effective and robust piping solutions.
• Comprehensive International Standard Compliance: Our deep understanding and vast stock of ASME B16.5, ASME B16.47 (Series A & B), and relevant ASTM, EN, DIN, JIS, AISI, ASME, NACE specifications make us a trusted choice for projects requiring strict adherence to global piping norms. Our manufacturing processes are precisely geared towards meeting these diverse standards. This facilitates seamless integration and compliance for international oil & gas, petrochemical, and power generation sectors, solidifying our position as a leading manufacturing and trading partner.
• Expert Technical Consultation, Backed by Manufacturing Know-how: Decades of specialized flange manufacturing expertise enable our seasoned technical team to provide unparalleled guidance on Slip-On flange selection. We offer tailored advice on material grades, pressure classes, facing types (RF, RTJ), dimensions, and optimal connection solutions, ensuring you acquire the exact, optimal Slip-On flange for your most critical applications, drawing directly from our extensive manufacturing insights.
• Robust Worldwide Export & Logistics for Manufactured Goods: As a dedicated worldwide exporter, Dipti Metal Industries guarantees efficient and reliable global delivery for products manufactured in our facilities, with comprehensive documentation support, including customs clearance assistance. We ensure smooth logistics and timely project completion across all continents, handling international shipping with expertise for all types of Slip-On Flanges that we produce. We are a major leader in global distribution, and our extensive shipping network ensures efficient delivery for our manufactured goods.
• Competitive Pricing & Superior Value Proposition from Direct Manufacturing: Leveraging strategic global sourcing partnerships and our own optimized manufacturing processes, Dipti Metal Industries consistently delivers premium quality Slip-On Flanges at highly competitive prices. This enhances project cost-efficiency for our extensive client base without compromising on critical performance, safety, and longevity in demanding industrial environments, ensuring superior value directly from a manufacturer.

Get a Quote Today for Your Slip-On Flanges Requirements!

Are you searching for dependable, high-performance Slip-On Flanges (SO, RF, RTJ) that comply with specific international standards for your critical pipeline connections? Contact Dipti Metal Industries, your expert global Slip-On flanges manufacturer, stockist, supplier, dealer, distributor, and exporter, today to discuss your specific requirements or to request a personalized, custom quote. Our knowledgeable and responsive team is dedicated to providing you with the most effective, safest, and most reliable Slip-On flange solutions. We guarantee long-term operational excellence, enhanced product integrity, and unparalleled project success in demanding industrial environments. We are a leading manufacturing partner for all your needs, offering a comprehensive range with excellent quality SO Flanges.

Price guidance (non-binding): USD 3.00–60,000.00 per unit depending on material grade, nominal pipe size, pressure class, facing type, quantity, and delivery terms. Final prices are quotation-based.
