Overview & Importance: The Advantage of Slip-On (SO) Flanges

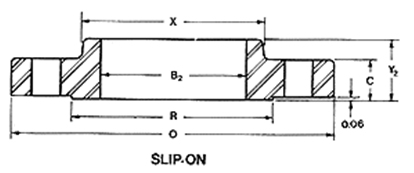

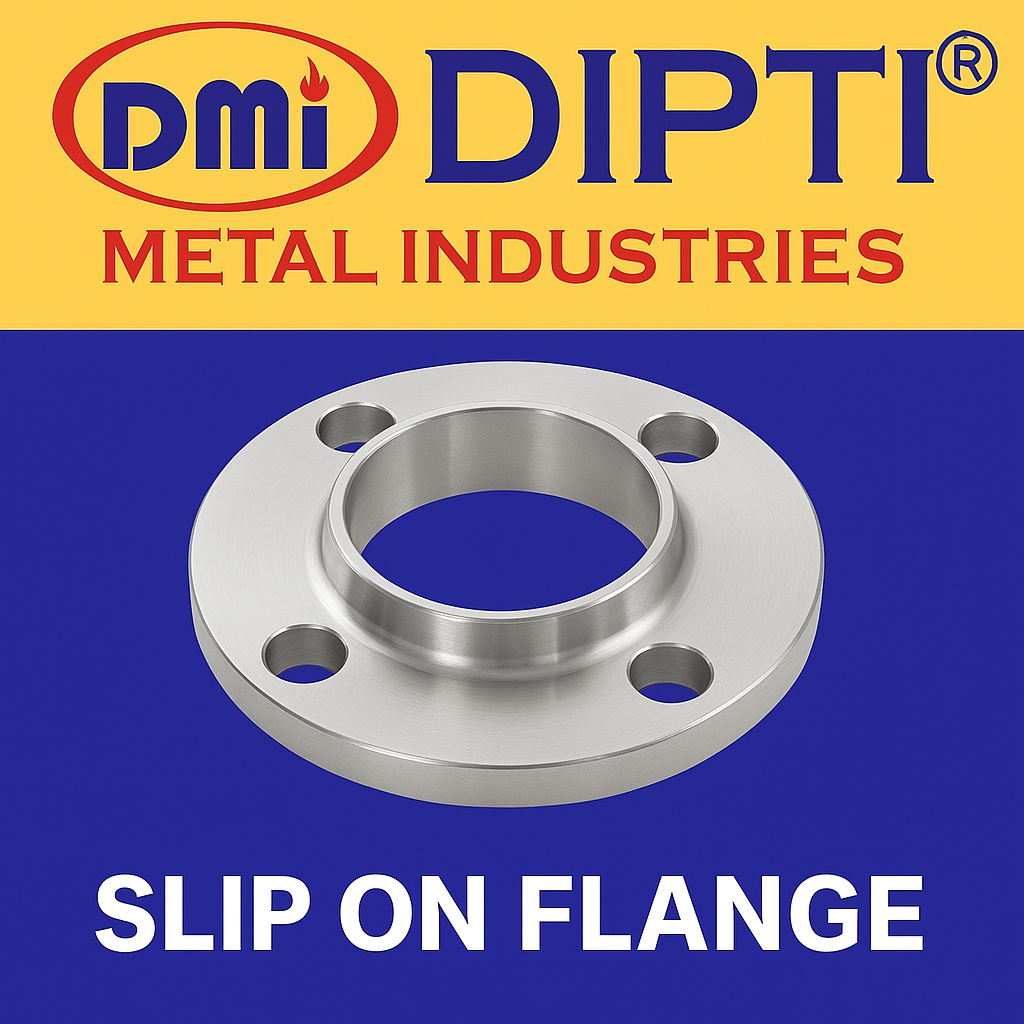

A Slip-On Flange (often abbreviated as SO Flange) is one of the most widely used types of forged flanges in industrial piping. It is easily recognized by its large inner bore which allows the pipe to be "slipped" inside the flange before final welding. Unlike a Weld Neck flange, a Slip-On flange requires two fillet welds—one on the outside and one on the inside—to secure the pipe. This design simplifies fabrication by reducing the precision required for pipe cutting and alignment, which significantly lowers manufacturing costs and erection time.

The core advantage of the Slip-On Flange is:

• Low Installation Cost: Easier alignment saves time and labor on site compared to Butt-Weld connections.
• Good Strength: Provides strength roughly two-thirds that of a Weld Neck flange, making it suitable for lower-pressure applications.
• Versatile Application: Widely used in waterworks, low-pressure steam, cooling, and utility services.

As a major global Slip-On Flange manufacturer and Largest Slip On Flanges Stockist in Mumbai, DIPTI METAL INDUSTRIES provides an extensive range of SO Flanges, adhering strictly to ASME B16.5 (up to Class 2500, though generally limited to Class 600 or below) and European standard EN 1092-1 (PN rated flanges). We ensure every flange is a reliable component in your piping system. We stock other flange types too, like Weld Neck Flanges and Blind Flanges.

Key Features & Unmatched Benefits of Dipti Metal's Slip-On (SO) Flanges

• Cost-Effective Installation: Significantly reduces the time and cost associated with flange-to-pipe alignment and welding compared to other flange types.
• Forged Manufacturing: Forged construction ensures optimal material grain flow and internal structure, yielding a robust flange suitable for pressure service.
• Broad Material Range: Stocked in all material grades, ensuring compliance with piping specifications in petrochemical, power, and utility industries.
• Standard Facings: Commonly available in Raised Face (RF) and Flat Face (FF) configurations to accommodate various gasket types and mating flange requirements.
• Full Standard Compliance: Manufactured strictly according to ASME B16.5 for inch dimensions and EN 1092-1 for metric PN dimensions, guaranteeing precise fitment and pressure ratings.

Slip-On Flanges: Types, Dimensions, and Pressure Ratings

DIPTI METAL INDUSTRIES offers a comprehensive inventory of Slip-On Flanges in all standard sizes and pressure classes, ensuring immediate availability for project deadlines. We are a Top Slip On Flanges Manufacturer and Biggest Slip On Flanges Exporter in this range.

Available Slip-On Flange Types and Facings:

• ASME B16.5 SO Flange (Class 150 to 2500)
• EN 1092-1 SO Flange (PN 6 to PN 40)
• DIN Flanges (Various Standards, e.g., DIN 2573, 2576)
• Facings: Raised Face (RF), Flat Face (FF)

Dimensional and Pressure Capabilities:

We also supply associated fittings like Ring and Spacer Flanges, and Spectacle Blind Flanges to match Slip-On connections.

Material Grades: Full Range of Slip-On Flange Grades & Equivalents

As a Largest Stockist and Top Supplier, we provide Slip-On Flanges in every major material class, ensuring worldwide compatibility for corrosion, temperature, and pressure requirements.

Slip-On Flanges: Adherence to International Specifications & Testing

Our Slip-On Flanges are manufactured in strict compliance with major international standards, ensuring safety and global compatibility. We are a Top Supplier specializing in both ASME and EN/DIN standards.

Applications: Where Biggest SO Flange Exporters Deliver Cost-Efficiency

Our Slip-On Flanges are the ideal choice for creating reliable, cost-effective, and permanent flanged joints in piping systems, especially where pressure conditions are moderate and cost control is essential.

• Water Treatment & Municipal Piping: Widely used in lower pressure water lines, cooling circuits, and utility networks.
• Oil & Gas (Low Pressure): In non-critical utility lines, vents, drains, and low-pressure storage tank connections in refineries and tank farms.
• Chemical & Petrochemical: In low-pressure lines handling non-aggressive or moderately corrosive fluids where material cost saving is prioritized.
• HVAC & Fire Protection: Common in commercial building utility systems, HVAC piping, and fire loop lines.
• Heat Exchangers & Vessels: Used for nozzles and connections on low-pressure vessels and heat exchangers.
• General Industrial Manufacturing: For machine construction and general fabrication where ease of installation is beneficial.

As a Leading Slip-On Flange Manufacturer in Mumbai, DIPTI METAL INDUSTRIES ensures its products are crucial for the efficient and safe operation of these systems globally.

Global Export Network: Worldwide Slip On Flanges Distributor & Slip On Flanges Exporter of Slip-On Flanges

DIPTI METAL INDUSTRIES is a proud Worldwide Slip-On Flange Exporter, Global Slip On Flanges Supplier, Leading Slip On Flanges Stockist, and Major Slip On Flanges Wholesaler of ASME B16.5 Forged Flanges to over 190 countries worldwide. We guarantee compliant and rapid international delivery of all grades of SO Flanges for your critical projects.

Explore Our Slip-On Flanges Extensive Global Reach (Illustrative Markets with Major Cities)

Why Choose Dipti Metal Industries for Your Slip-On Flange Needs? Your Global Advantage

• Premier Global Slip-On Flange Manufacturer & Flange Expertise: As a leading global Slip-On Flange Manufacturer, largest SO Flange Stockist, top Slip-On Flange Supplier, and biggest SO Flange Exporter, we offer unparalleled expertise in cost-effective, easily aligned flange connections.
• Uncompromising Quality, Precision, & Traceability: ISO 9001 certified. All flanges are forged and machined to ASME B16.5 and are backed by full MTC EN 10204 3.1, ensuring superior pressure integrity and reliable sealing.
• Broad Range of Products & Classes: Our large stock covers all materials (SS, CS, AS, Duplex, Nickel Alloys, etc.) and pressure classes (from Class 150 to Class 2500), ensuring a single, reliable source for all your Slip-On flange requirements.
• Expert Technical Consultation: Our technical team provides guidance on selecting the correct facing (RF/FF), wall thickness, and material grade for optimal low-pressure service performance.
• Robust Worldwide Export & Logistics: As a dedicated worldwide exporter, we guarantee efficient global delivery with secure packaging and streamlined customs, supporting your project timelines across all continents.

Get a Quote Today for Your Slip-On Flanges Requirements!

Are you searching for dependable, high-quality Forged Slip-On Flanges (SO Flanges) in Stainless Steel, Carbon Steel, Alloy Steel, or Duplex that comply with ASME B16.5 or EN 1092-1 for your low-pressure piping systems? Contact Dipti Metal Industries, your expert global Slip-On Flange Manufacturer, Largest Slip On Flanges Stockist, Top Slip On Flanges Supplier, and Biggest Slip On Flanges Exporter, today to discuss your specific requirements or to request a personalized, custom quote. Our knowledgeable and responsive team is dedicated to providing you with the most effective, safest, and most reliable Slip-On Flange solutions. We guarantee long-term operational excellence and unparalleled project success in demanding environments.

Price guidance (non-binding): USD 0.80–500.00 per unit depending on material, size, class, quantity, and delivery terms. Final prices are quotation-based for these essential flange materials.
