Brazolet® for IPS Pipe

ASME SB-98 UNS C665500 Alloy A

Outlet Sizes

A

B

C

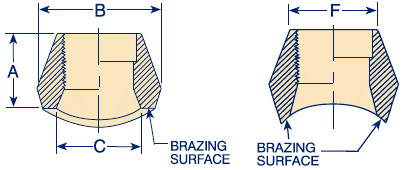

Brazing Surface

F-MIN. MIL-1183

1/4

11/16

1

9/16

0.188

0.700

3/8

13/16

1 1/4

3/4

0.190

0.855

1/2

1

1 7/16

7/8

0.220

1.020

3/4

1 1/16

1 3/4

1 1/8

0.240

1.250

1

1 1/4

2 1/8

1 7/16

0.270

1.535

1 1/4

1 5/16

2 9/16

1 3/4

0.300

1.900

1 1/2

1 3/8

2 7/8

2

0.330

2.160

2

1 1/2

3 1/2

2 9/16

0.360

2.675

2 1/2

1 13/16

4 1/8

3

0.384

3.215

3

2

4 13/16

3 11/16

0.442

3.880

4

2 1/4

6

4 3/4

0.476

4.940

5

2 5/8

7 1/16

5 9/16

0.656

6.163

Brazolet® for Tubing

Type K, L, and M Tubing. ASME SB-98 UNS C65500 Alloy A

Outlet Sizes

A

B

C

Brazing Surface

F-MIN. MIL-1183

1/4

11/16

1

9/16

0.188

0.700

3/8

13/16

1 1/4

3/4

0.190

0.855

1/2

13/16

1 1/4

3/4

0.190

0.855

3/4

1

1 7/16

7/8

0.220

1.020

1

1 1/16

1 3/4

1 1/8

0.240

1.250

1 1/4

1 1/4

2 1/8

1 7/16

0.270

1.535

1 1/2

1 5/16

2 9/16

1 3/4

0.300

1.900

2

1 3/8

2 7/8

2

0.330

2.160

2 1/2

1 1/2

3 1/2

2 9/16

0.360

2.675

3

1 13/16

4 1/8

3

0.384

3.215

4

2 1/8

5 1/2

4 5/16

0.437

4.400
