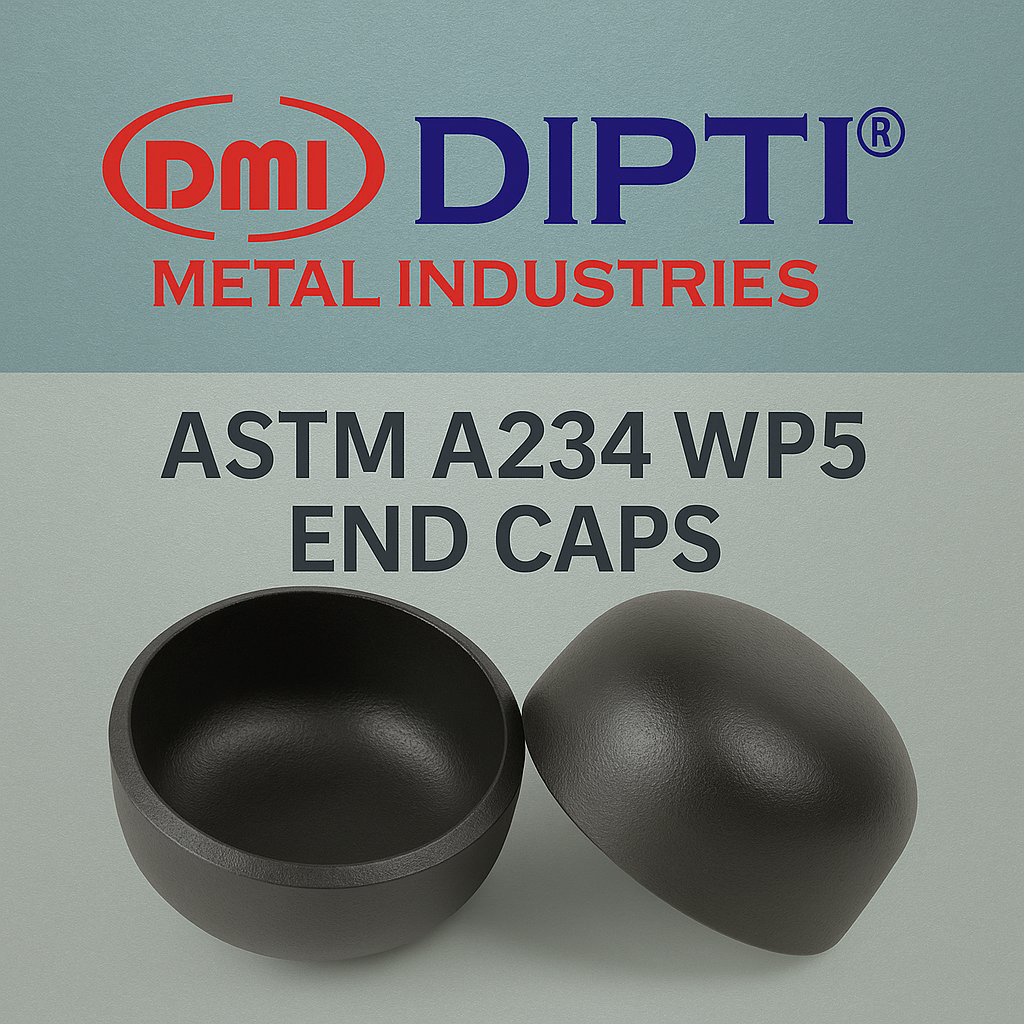

ASTM A234 WP5 Butt-Weld End Caps - Leading 5Cr-0.5Mo Alloy Steel Pipe Fittings Manufacturer, Exporter, Stockist & Supplier
DIPTI METAL INDUSTRIES – Your Premier Worldwide ASTM A234 WP5 End Caps Manufacturer, Global A234 WP5 End Caps Stockist, Top A234 WP5 End Caps Supplier, Biggest Commercial A234 WP5 End Cap Dealer, and Best A234 WP5 End Caps Exporter of essential components for securely sealing critical piping infrastructure. Founded in 2009, we are a leading ISO 9001:2015 certified firm based in Mumbai, India, and are renowned as the leading A234 WP5 End Caps manufacturer in Mumbai and a top A234 WP5 End Caps exporter in India. Our expertise in alloy steel fabrication ensures the highest integrity for your most demanding projects, from **refining and petrochemical facilities** to **power generation and chemical processing plants**.
Our WP5 Butt-Weld End Caps are meticulously fabricated from high-quality alloy steel (**5Cr-0.5Mo**) to handle severe thermal and pressure demands, specifically designed for permanently closing the end of a pipe in systems requiring superior creep resistance, good oxidation resistance, and reliable ductility at elevated temperatures. We maintain a large stock to serve as the biggest ASTM A234 WP5 End Caps stockist, ensuring immediate dispatch for urgent industrial needs globally. Every fitting is supplied with full material traceability via EN 10204 3.1 MTCs, validating our position as a top A234 WP5 End Caps material supplier for critical high-temperature service.
Overview & Importance: Why Choose a Leading ASTM A234 WP5 End Caps Manufacturer
The **ASTM A234 WP5 Butt-Weld End Cap** is a specialized pipe fitting, absolutely crucial for providing a permanent, leak-proof seal to the end of high-energy piping systems operating under elevated temperatures and pressures, particularly where excellent creep resistance and good oxidation resistance are critical. As a major global **A234 WP5 End Caps manufacturer** and supplier based in Mumbai, DIPTI METAL INDUSTRIES ensures these fittings meet the most rigorous standards required for long-term, reliable operation in demanding environments, such as **refining, petrochemical, and power generation sectors**.
The **WP5 grade** is a 5% Chromium, 0.5% Molybdenum alloy steel, specifically developed for high-temperature service. This precise alloying provides significant advantages over standard carbon steels by offering:
- Excellent Creep Resistance: The Chromium and Molybdenum content significantly enhances the material's ability to resist deformation under prolonged stress at high temperatures (typically up to 550°C / 1020°F).
- Good Oxidation & Corrosion Resistance: The 5% Chromium content provides superior resistance to high-temperature oxidation and certain corrosive environments (e.g., sulfidation), extending operational life.
- Good Weldability & Mechanical Properties: Offers a balanced combination of tensile strength, yield strength, and ductility, while being readily weldable with appropriate procedures, ensuring reliable connections.
The Butt-Weld feature ensures a full-penetration, permanent connection when welded to matching pipe material (e.g., ASTM A335 P5 pipe), creating a leak-proof, structurally sound system essential for fluid/gas containment under severe stress. As a **top A234 WP5 End Caps exporter in India**, we guarantee this high integrity for every fitting destined for critical applications globally.
Key Features & Unmatched Benefits of Dipti Metal's ASTM A234 WP5 End Caps
- Optimized for High-Temperature Service: Specifically engineered for sustained, reliable operation in high-heat and pressure environments, ideal for applications where enhanced creep resistance is required.
- Excellent Creep Resistance: 5Cr-0.5Mo composition provides superior long-term resistance to creep deformation at elevated operating temperatures, ensuring structural integrity over time.
- Good Oxidation & Corrosion Resistance: The chromium content offers effective protection against high-temperature oxidation and specific corrosive media, crucial for longevity in demanding atmospheres.
- Reliable Weldability & Fabricability: With proper welding procedures and post-weld heat treatment, WP5 alloy steel allows for strong, homogeneous, and defect-free butt-welded joints for **WP5 End Caps**.
- Precise Dimensional Tolerances: Manufactured with exacting accuracy as per ASME B16.9 and ASME B16.25 standards, ensuring seamless integration, ease of installation, and secure closure of pipe ends.
- Full Material Traceability & Rigorous Certification: Complete documentation accompanies every **A234 WP5 End Cap**, providing transparent and absolute assurance of material quality and strict adherence to international specifications via EN 10204 3.1 MTCs.
- Enhanced Operational Lifespan & Value: The inherent durability, superior reliability, and robust performance of our **WP5 alloy steel End Caps** significantly contribute to maximized operational lifespans and minimized maintenance expenditures in challenging industrial environments.
ASTM A234 WP5 End Caps: Comprehensive Product Range & Dimensions
DIPTI METAL INDUSTRIES offers an extensive and versatile array of **ASTM A234 WP5 Butt-Weld End Caps**, meticulously manufactured and readily available to meet the precise requirements of diverse advanced industrial projects. As a leading **A234 WP5 End Caps manufacturer**, our inventory covers a wide spectrum of configurations, ensuring we are your reliable solution for high-quality **5Cr-0.5Mo alloy steel pipe fittings**.
Types of WP5 Butt-Weld End Caps Available:
- Dish Caps (Ellipsoidal Heads):
- Most common type, featuring a curved shape that evenly distributes pressure.
- Ideal for a wide range of pressure vessel and piping applications in high-temperature systems.
- Spherical Caps:
- Feature a full hemispherical shape, providing a very strong design for high-pressure applications.
- Torispherical Caps:
- Combination of a spherical dish with a toroidal knuckle transition, used in high-temperature systems where specific design parameters are required.
- Seamless WP5 End Caps: Preferred for critical high-pressure and high-temperature applications demanding maximum structural integrity and homogeneity.
- Welded WP5 End Caps: Available for larger diameters and specific structural requirements, manufactured with highly qualified and certified welding procedures and stringent post-weld heat treatment.
General Dimensions & Technical Capabilities for WP5 End Caps:
- Dimensional Range: From 1/2 inch NPS to 48 inch NPS (Nominal Pipe Size), accommodating a broad spectrum of critical piping system requirements.
- Wall Thickness Schedules: Available in standard schedules including SCH 10, SCH 20, SCH 30, SCH 40, STD, SCH 60, SCH 80, XS, SCH 100, SCH 120, SCH 140, SCH 160, XXS, and custom thicknesses as per client specifications for diverse pressure ratings.
- Manufacturing Process: State-of-the-art hot forming, cold forming, precision machining, precisely controlled heat treatment (normalizing and tempering for optimal mechanical properties), and rigorous inspection processes.
- Ends: Precisely beveled ends conforming to ASME B16.25 for seamless, full-penetration butt-welding connections, critical for high-integrity systems.
ASTM A234 WP5 Material: Composition & Mechanical Properties
DIPTI METAL INDUSTRIES provides **ASTM A234 WP5 Butt-Weld End Caps** manufactured exclusively from premium **P5 Chromium-Molybdenum (5Cr-0.5Mo) Alloy Steel**. This advanced alloy is chosen for its exceptional performance in high-temperature environments, ensuring maximum operational reliability, superior creep resistance, and extended service life. Our WP5 fittings strictly adhere to the rigorous chemical composition and mechanical property requirements defined by ASTM A234 and ASME SA234 standards.
Key Material Composition (ASTM A234 WP5)
| Element | Percentage Range (%) |
|---|---|
| Carbon (C) | 0.15 Max |
| Manganese (Mn) | 0.30 - 0.60 |
| Phosphorus (P) | 0.030 Max |
| Sulfur (S) | 0.030 Max |
| Silicon (Si) | 0.50 - 1.00 |
| Chromium (Cr) | 4.00 - 6.00 |
| Molybdenum (Mo) | 0.45 - 0.65 |
| Nickel (Ni) | 0.50 Max |
| Copper (Cu) | 0.35 Max |
| Vanadium (V) | 0.03 Max |
| Niobium (Nb) (Columbium) | 0.03 Max |
Note: Detailed chemical analysis for each batch is provided in the EN 10204 3.1 Mill Test Certificate (MTC). The precise control of Cr and Mo content is critical for WP5's enhanced creep resistance and high-temperature performance.
Mechanical Properties (ASTM A234 WP5, typical)
| Property | Minimum Requirement |
|---|---|
| Tensile Strength | 485 MPa (70,000 psi) |
| Yield Strength | 275 MPa (40,000 psi) |
| Elongation in 2 in. (50mm) | 20% Min |
| Hardness | 207 HBW Max |
Note: Specific mechanical properties are critically dependent on the precise heat treatment protocols (normalizing and tempering). Our **leading A234 WP5 End Caps manufacturer in Mumbai** facility meticulously manages all heat treatment requirements to ensure optimal material performance for critical service.
ASTM A234 WP5 End Caps: Adherence to International Specifications & Standards
Our **ASTM A234 WP5 Butt-Weld End Caps** are manufactured in strict compliance with the most rigorous international codes and standards. This unwavering commitment ensures the highest levels of quality, safety, and performance in critical high-temperature and high-pressure piping systems, particularly in refining, petrochemical, and advanced power generation applications.
| Category | Applicable Standards | Description / Scope |
|---|---|---|
| Material Specification | ASTM A234 / ASME SA234 | Standard Specification for Pipe Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service, specifically for the WP5 grade, covering detailed chemical, mechanical, and critical heat treatment requirements. |
| Dimensional Standard | ASME B16.9 | Wrought Butt-Welding Fittings, covering critical dimensions such as length through center, wall thickness, and outside diameters for **WP5 Butt-Weld End Caps**, ensuring precise fit-up in advanced systems. |
| Butt-Welding Ends | ASME B16.25 | Butt-Welding Ends, specifying detailed preparation for welding connections (e.g., specific bevel angles, root gap) to ensure strong, full-penetration, and crack-free joints, essential for WP5 End Caps. |
| Pressure Piping Codes | ASME B31.1, ASME B31.3 | Power Piping (B31.1) and Process Piping (B31.3), governing the design, fabrication, installation, inspection, and testing of pressure piping systems where **WP5 fittings** are used in high-energy applications. |
| Base Pipe Material Equivalent | ASTM A335 P5 / ASME SA335 P5 | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service, which is the corresponding pipe material for **WP5 fittings**, ensuring precise material compatibility throughout the system. |
| Material Traceability | EN 10204 3.1 | Metallic Products – Types of Inspection Documents (Mandatory Mill Test Certificates for all **WP5 End Caps**), providing full traceability from melting to final product, including comprehensive heat treatment details. |
Note: All **ASTM A234 WP5 Butt-Weld End Caps** are supplied with comprehensive documentation, including detailed dimensional reports, Material Test Certificates (MTCs), and applicable test reports (e.g., NDT, pressure testing), ensuring full compliance and traceability. Specific project requirements and additional client specifications are always accommodated.
Applications: Where **Top A234 WP5 End Caps Exporters in India** Deliver Critical Components
Our **ASTM A234 WP5 Butt-Weld End Caps** are the **top** choice for industries requiring robust, high-temperature, and creep-resistant piping components with improved corrosion resistance compared to lower alloy grades. As a **leading A234 WP5 End Caps manufacturer in India**, DIPTI METAL INDUSTRIES serves large EPCs and end-users globally, providing essential fittings for the most critical infrastructure:
- Refining & Petrochemical Industries: Absolutely critical for high-temperature sections of crackers, reformers, furnaces, and various process units where crude oil and chemical feedstocks are processed, especially in environments with mild sulfidic corrosion.
- Fossil Fuel Power Plants: Used in superheater and reheater sections, steam lines, boiler components, and headers operating at high temperatures where creep strength is essential for long-term reliability.
- Chemical Processing Plants: Applied in systems handling corrosive and high-temperature chemicals, requiring materials with good oxidation and corrosion resistance, but where WP9 or WP91 might be over-specified.
- Industrial Furnaces & Heat Exchangers: Essential for closing off high-temperature piping within industrial heating systems, ensuring secure containment and heat transfer efficiency.
- Specialized High-Temperature Piping Systems: Reliable pipe termination for any industrial piping system that requires the superior creep resistance and high-temperature stability of WP5.
DIPTI METAL INDUSTRIES, as a reliable Mumbai-based **A234 WP5 End Caps manufacturer**, is ready to supply your project needs for these critical **5Cr-0.5Mo Alloy Steel Fittings** with guaranteed quality and international compliance, ensuring the safest, most efficient, and longest-lasting operation of your high-temperature systems.
Uncompromising Quality Assurance & Certifications for ASTM A234 WP5 End Caps
Quality is the paramount concern at DIPTI METAL INDUSTRIES. We are a **top A234 WP5 End Caps supplier and A234 WP5 End Caps manufacturer** committed to operating under stringent **ISO 9001 certified quality management systems**, ensuring that every **ASTM A234 WP5 Butt-Weld End Cap** leaving our facility is **fully traceable** and meets the highest industry benchmarks. Our commitment to quality extends from meticulous sourcing of **5Cr-0.5Mo alloy steel** raw materials to precise manufacturing, rigorous testing, and secure delivery, guaranteeing fittings that perform reliably and safely in their intended applications.
- All International Certifications & Test Certificates: Every **A234 WP5 End Cap** is supplied with **all mandatory international certifications** and **all test certificates**, including **EN 10204 3.1 Mill Test Certificates (MTCs)** for raw materials. These verify chemical composition, mechanical properties, and full compliance directly from the source, a key aspect of our **certified quality** for all our **WP5 End Caps**.
- Rigorous Manufacturing, Inspection & Testing: Our **WP5 Butt-Weld End Caps** undergo comprehensive visual and dimensional inspections throughout the manufacturing process. Key testing includes:
- Dimensional Accuracy: Precise verification of dimensions against ASME B16.9 and client specifications using advanced measurement tools, ensuring critical fit-up.
- Mechanical Testing: Includes tensile tests, yield strength, elongation, hardness tests (e.g., Brinell, Rockwell), and impact tests (if specified) to confirm mechanical properties meet the stringent requirements of the WP5 grade.
- Chemical Analysis: Spectro analysis (PMI - Positive Material Identification) to verify correct alloy composition (Cr, Mo content) for all WP5 End Caps, preventing material mix-ups.
- Heat Treatment Verification: Confirmation of proper normalizing and tempering cycles, which are critical for achieving WP5's desired microstructure and optimal creep resistance.
- Non-Destructive Testing (NDT): Mandatory tests often include Radiography (RT) for internal soundness of welds (if welded fittings), Ultrasonic Testing (UT), Magnetic Particle Inspection (MPI), and Liquid Penetrant Testing (LPT) to detect surface and subsurface flaws.
- Hydrostatic Testing: Pressure testing to verify the integrity and leak-tightness of fittings.
- Third-Party Inspection (TPI) Facilitated: We regularly facilitate inspections by world-renowned third-party agencies such as TUV, Bureau Veritas (BV), Lloyd's Register (LR), SGS, DNV, and other client-nominated inspectors, to provide an additional layer of assurance and compliance verification, reinforcing our position as a **leading global A234 WP5 End Caps manufacturer and A234 WP5 End Caps exporter** of reliable **ASTM A234 WP5 Butt-Weld End Caps**.
- Industry-Specific Compliance: We routinely supply **WP5 End Caps** with full compliance to major international standards (e.g., ASME B31.1 for Power Piping, B31.3 for Process Piping, PED, NORSOK) and client project specifications for sectors like Refining, Petrochemical, Power Generation, and Chemical Processing, ensuring all our **alloy steel fittings** are fit for critical high-temperature and high-pressure service.
Global Export Network: Worldwide Distributor & Exporter of ASTM A234 WP5 End Caps
DIPTI METAL INDUSTRIES is a proud **Worldwide Exporter, Global Supplier, Leading Dealer, and Major Stockist** of **ASTM A234 WP5 Butt-Weld End Caps**, with an extensive network that extends to **over 190 countries worldwide**. We ensure timely and compliant delivery of our premium **5Cr-0.5Mo alloy steel pipe fittings** to major industrial hubs and critical infrastructure projects across the globe, with a strong focus on **refining, petrochemical, power generation, and chemical processing sectors worldwide**, solidifying our position as a **top international trading partner** for these specialized high-temperature and creep-resistant solutions. The countries and cities listed below highlight our established key markets and are illustrative of our truly global reach for **WP5 End Caps**.
Explore Our WP5 End Caps Extensive Global Reach (Illustrative Markets)
- Germany: Frankfurt, Hamburg, Munich, Berlin (Primary for Petrochemical, Power, Chemical Plants)
- United Kingdom: London, Manchester, Birmingham (Primary for Energy, Refining, High-Temp Power)
- France: Paris, Lyon, Marseille (Key for Energy, High-Temperature Industrial Facilities)
- Italy: Milan, Rome, Genoa (Key for Petrochemical, Industrial Sector)
- Netherlands: Rotterdam, Amsterdam (Primary for Refineries, Complex Chemical Processing)
- Spain: Barcelona, Madrid, Valencia (Key for High-Energy Industrial Infrastructure, Power)
- Sweden: Stockholm, Gothenburg (Energy, Heavy Industry)
- Belgium: Brussels, Antwerp (Chemical, Petrochemical)
- Austria: Vienna, Graz (High-Temperature Industrial, Energy)
- Switzerland: Zurich, Geneva (High-Tech Industrial, Power)
- Portugal: Lisbon, Porto (Power, Heavy Industrial)
- Ireland: Dublin, Cork (Specialized Industrial requiring advanced high-temp fittings)
- Norway: Oslo, Stavanger (Offshore Oil & Gas, demanding environments)
- Denmark: Copenhagen, Aarhus (Energy, Industrial)
- Finland: Helsinki, Tampere (Power, Heavy Industry)
- Poland: Warsaw, Krakow (Power Generation, Large Industrial Projects)
- Czech Republic: Prague, Brno (High-Temperature Industrial, Energy)
- Hungary: Budapest, Debrecen (Power, Chemical)
- Greece: Athens, Thessaloniki (Power Plants, Industrial)
- Romania: Bucharest, Cluj-Napoca (Energy Sector, Industrial Growth)
- Japan: Tokyo, Osaka, Nagoya (Primary for High-Temp Power Plants, Refineries)
- China: Shanghai, Guangzhou, Beijing (Key for Power, Petrochemical, Heavy Manufacturing)
- India: Mumbai, Chennai, Delhi, Bangalore (Local Markets - Major High-Temp Power, Oil & Gas, Chemical Demand)
- South Korea: Seoul, Busan, Ulsan (Primary for Petrochemical, Advanced Power, Marine/Offshore)
- UAE: Dubai, Abu Dhabi, Sharjah (Primary for Oil & Gas, Power Generation, Desalination Plants with high-temp sections)
- Saudi Arabia: Riyadh, Jeddah, Dammam (Primary for Oil & Gas, Refining, Power Infrastructure)
- Singapore: Singapore City (Key for Petrochemical, Refinery Hub, Power)
- Malaysia: Kuala Lumpur, Johor Bahru (Oil & Gas, Power Plants)
- Indonesia: Jakarta, Surabaya (Energy, Large Industrial Projects)
- Thailand: Bangkok, Laem Chabang (Power, Petrochemical)
- Vietnam: Ho Chi Minh City, Hanoi (Energy, Heavy Industrial)
- Philippines: Manila, Cebu City (Power, Industrial)
- Bangladesh: Dhaka, Chittagong (Power, Industrial)
- Hong Kong: Hong Kong (Critical Infrastructure Projects)
- Taiwan: Taipei, Kaohsiung (Petrochemical, Advanced Power)
- Sri Lanka: Colombo, Kandy (Power Plants)
- Qatar: Doha, Mesaieed (Oil & Gas, LNG, Petrochemical)
- Kuwait: Kuwait City, Ahmadi (Oil & Gas, Refinery)
- Oman: Muscat, Sohar (Oil & Gas, Industrial)
- Bahrain: Manama, Sitra (Petrochemical, Refining)
- Egypt: Cairo, Alexandria (Oil & Gas, Power)
- USA: Houston, New York, Chicago, Los Angeles (Primary Market for Power Generation, Oil & Gas, Petrochemical EPCs)
- Canada: Toronto, Vancouver, Calgary, Montreal (Key for Oil & Gas, Utilities, Major Power Projects)
- Mexico: Mexico City, Monterrey, Veracruz (Key for Energy Sector, Refining, High-Temperature Industrial Plants)
- Brazil: São Paulo, Rio de Janeiro, Belo Horizonte (Key for Oil & Gas, Petrochemical, Power)
- Argentina: Buenos Aires, Cordoba (Key for Energy, Industrial)
- Colombia: Bogotá, Barranquilla (Oil & Gas, Refining)
- Peru: Lima, Callao (Mining, Energy Infrastructure)
- Chile: Santiago, Valparaíso (Mining, Power)
- South Africa: Johannesburg, Cape Town, Durban (Key for Power Generation, Mining, Chemical)
- Nigeria: Lagos, Port Harcourt, Abuja (Primary for Oil & Gas, Energy Sector)
- Algeria: Algiers, Oran (Oil & Gas, Petrochemical)
- Ghana: Accra, Tema (Energy, Industrial)
- Kenya: Nairobi, Mombasa (Power, Industrial)
- Australia: Sydney, Melbourne, Brisbane (Primary for Mining, Oil & Gas, Power Generation)
- New Zealand: Auckland, Wellington (Key for Energy, Industrial Projects)
Why Choose Dipti Metal Industries for Your ASTM A234 WP5 End Cap Needs? Your Global Advantage
- Premier Global A234 WP5 End Caps Manufacturer & Comprehensive Expertise: As a **leading global ASTM A234 WP5 End Caps Manufacturer**, **largest A234 WP5 End Caps Stockist**, **top A234 WP5 End Caps Supplier**, **leading A234 WP5 End Caps Dealer**, and **best A234 WP5 End Caps Exporter**, we offer unparalleled expertise in producing and supplying a vast range of **5Cr-0.5Mo alloy steel Butt-Weld End Caps**, including Dish, Ellipsoidal, and Spherical configurations. We guarantee availability for your large-scale high-temperature projects worldwide. We are a **reliable and leading manufacturing and trading partner**.
- Uncompromising Quality, Precision, & Traceability: Dipti Metal Industries adheres to **ISO 9001 certified** processes across our entire manufacturing and supply chain. We meticulously ensure all products, from raw material to finished goods, undergo rigorous QA and provide **full material traceability with EN 10204 3.1 Mill Test Certificates (MTCs)** and PMI testing. This guarantees every **A234 WP5 End Caps alloy steel fitting** meets stringent international standards (ASTM A234, ASME B16.9) for **superior integrity and reliability** in critical high-temperature service.
- Broad Range of WP5 Configurations & Schedules: Our extensive inventory and manufacturing capabilities cover all standard and custom dimensions for **ASTM A234 WP5 End Caps**, including various nominal pipe sizes (NPS) and wall thickness schedules (SCH 10 to XXS). Whether you need seamless or welded, dish or spherical, we offer solutions that perfectly match your exact project requirements for **5Cr-0.5Mo alloy steel pipe fittings**.
- Expert Technical Consultation & Application Guidance: Decades of specialized alloy steel manufacturing expertise enable our seasoned technical team to provide **unparalleled guidance on A234 WP5 End Caps fitting selection**. We offer tailored advice on optimal dimensions, schedules, and compliance, ensuring you acquire the exact, best material for your most critical applications in refining, petrochemical, power generation, or chemical processing sectors.
- Robust Worldwide Export & Logistics: As a dedicated **worldwide exporter**, Dipti Metal Industries guarantees **efficient and reliable global delivery** for all our **ASTM A234 WP5 End Caps**. We ensure secure, robust export packaging, streamlined customs clearance, and optimized logistics, facilitating timely project completion across all continents. We are a big leader in global distribution and our large shipping network ensures best delivery.
- Competitive Pricing & Superior Value Proposition: Leveraging strategic global sourcing partnerships, optimized manufacturing processes, and efficient logistics, Dipti Metal Industries consistently delivers premium quality **ASTM A234 WP5 Butt-Weld End Caps** at **highly competitive prices**. This enhances project cost-efficiency for our large client base without compromising on critical performance, safety, and longevity in the most demanding industrial environments, ensuring the best value.
Get a Quote Today for Your ASTM A234 WP5 End Cap Requirements!
Are you searching for dependable, **high-performance ASTM A234 WP5 Butt-Weld End Caps** that comply with specific international standards for your critical refining, petrochemical, power generation, or chemical processing applications? Contact Dipti Metal Industries, your expert **global A234 WP5 End Caps manufacturer, stockist, supplier, dealer, distributor, and exporter**, today to discuss your specific requirements or to request a personalized, custom quote. Our knowledgeable and responsive team is dedicated to providing you with the most effective, safest, and most reliable **5Cr-0.5Mo alloy steel fitting** solutions. We guarantee **long-term operational excellence, enhanced product integrity, and unparalleled project success** in demanding industrial environments. We are the **best and leading partner** for all your needs, offering a large and comprehensive range with top quality.
Price guidance (non-binding): USD 0.35–3,500.00 per unit/kg depending on size, schedule, configuration (Dish/Ellipsoidal/Spherical), quantity, and delivery terms. Final prices are quotation-based.
ASTM A234 WP5 Butt-Weld End Caps — Frequently Asked Questions
The primary purpose of ASTM A234 WP5 End Caps is to provide a permanent, pressure-tight seal to the end of high-temperature piping systems. WP5 is a 5% Cr-0.5% Mo alloy steel, specifically designed for excellent creep resistance, good oxidation resistance, and reliable performance at elevated temperatures, critical for applications in refining, petrochemical, and power generation where secure containment and high-temperature stability are paramount.
The key difference is the product form. ASTM A335 P5 is the specification for the Seamless Ferritic Alloy-Steel Pipe material, which is a 5Cr-0.5Mo steel designed for severe high-temperature service with enhanced creep resistance. ASTM A234 WP5 is the specification for the Butt-Weld Fittings (like End Caps, Elbows, Tees, Reducers) that are manufactured from that same P5 alloy steel. This ensures complete material compatibility and consistent performance across the assembled piping system, especially critical for high-temperature industrial applications.
WP5 is designed for demanding high-temperature and high-pressure service. While specific limits depend on the piping class, wall thickness, and operating conditions, these fittings are commonly used in services reaching temperatures up to approximately $550^{\circ}\text{C}$ ($1020^{\circ}\text{F}$), depending on the pressure rating and design code. Always refer to the applicable piping code (e.g., ASME B31.1 for Power Piping or B31.3 for Process Piping) for final design temperature and pressure allowances, ensuring safe and reliable operation.
Yes, as a top supplier, we guarantee full traceability for all our products. Every shipment of our ASTM A234 WP5 Butt-Weld End Caps includes the mandatory EN 10204 3.1 Mill Test Certificate (MTC). This certificate comprehensively confirms the precise chemical analysis (including Cr and Mo content), detailed mechanical test results, critical heat treatment parameters, and all other relevant inspection data of the specific heat batch used for your fittings, ensuring full compliance with international standards and project specifications.
The most recognized international equivalent to ASTM A234 WP5 is often found in European standards, such as **X12CrMo5** or simply known as P5 steel in various international specifications (e.g., EN 10222-2, EN 10216-2). When specifying fittings for international projects, it is absolutely crucial to verify that the material chemistry, mechanical properties (especially creep data), and heat treatment requirements of the proposed equivalent grade precisely match those of ASTM A234 WP5 to ensure critical performance and safety in high-temperature applications.
