MSS SP-75 Standard Practice: High-Strength, Wrought, Butt-Welding Fittings as per Latest Edition

Understanding MSS SP-75: High-Strength, Wrought, Butt-Welding Fittings as per Latest Edition

MSS SP-75 (latest edition) is a comprehensive standard practice that ensures the reliability and performance of high-strength butt-welding fittings used in critical industrial applications. This document, developed by the Manufacturers Standardization Society of the Valve and Fittings Industry, Inc. (MSS), sets forth detailed requirements that go beyond general fitting standards like ASME B16.9 for high-pressure service.

The latest edition of MSS SP-75 incorporates clarifications and enhanced requirements for design, proof testing, materials, chemistries, heat treatment, impact testing, and quality control. Dipti Metal Industries ensures that our MSS SP-75 high-strength butt-welding fittings, including our range of MSS SP-75 ASTM A860 WPHY42 Pipe Fittings, MSS SP-75 WPHY46 Pipe Fittings, and MSS SP-75 WPHY52 Pipe Fittings, meet the highest benchmarks for design, materials, chemical and tensile properties, heat treatment, impact testing, and quality control. This makes us the leading MSS SP-75 manufacturer in Mumbai and a top MSS SP-75 supplier in India.

Scope of MSS SP-75 Standard Practice (Latest Edition)

The scope of MSS SP-75 (latest edition) explicitly covers:

• Factory-Made Fittings: Both seamless and electric welded carbon and low-alloy steel MSS SP-75 butt-welding fittings.
• Applications: Primarily for high-pressure gas and oil transmission and distribution systems, including pipelines, compressor stations, metering and regulating stations, and mains.
• Sizes: Governs MSS SP-75 fittings NPS 60 and smaller, with dimensional requirements for NPS 14 and smaller referenced to ASME B16.9 Butt-Welding Fittings.

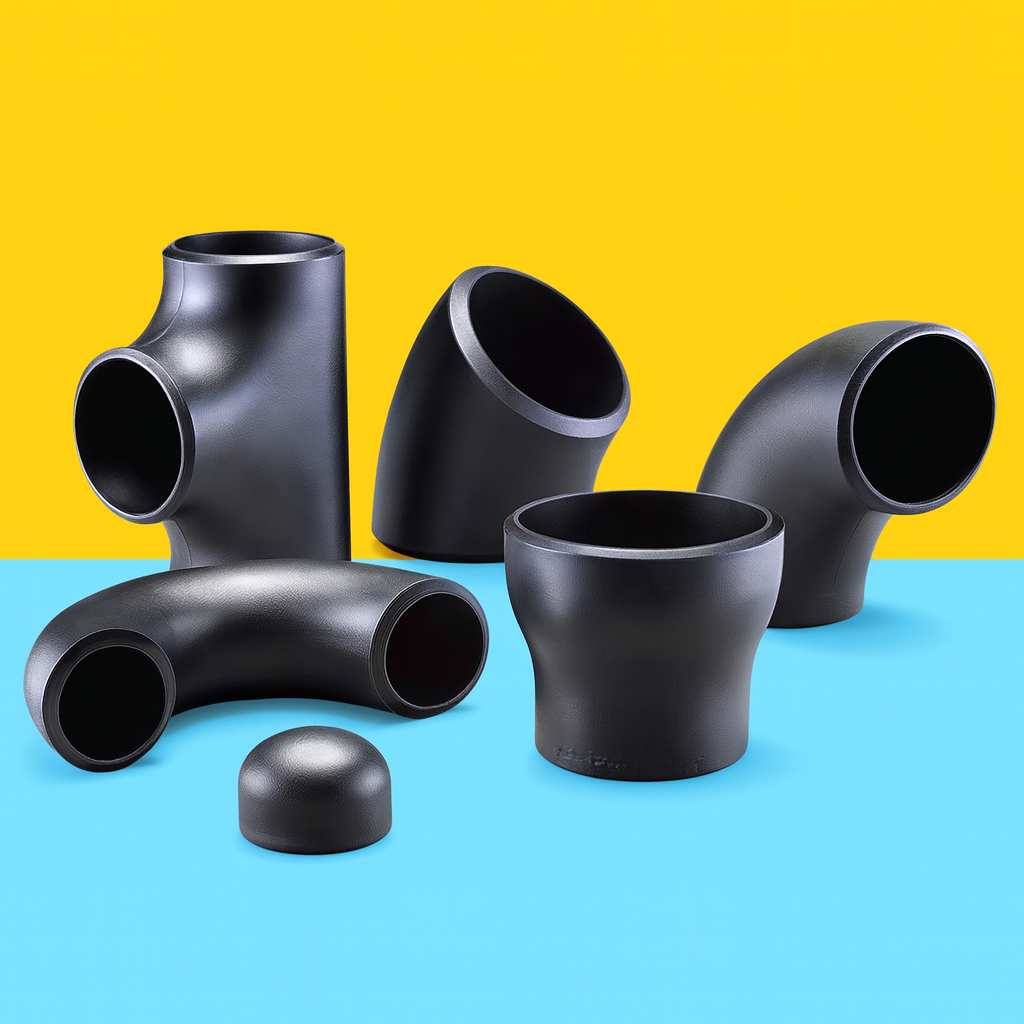

• MSS SP-75 Fitting Types: Applies to various MSS SP-75 butt-welding fittings such as MSS SP-75 elbows (including segments of MSS SP-75 elbows), MSS SP-75 reducing elbows, MSS SP-75 caps (MSS SP-75 end caps), MSS SP-75 tees (straight and reducing), MSS SP-75 single or multiple-outlet extruded headers, MSS SP-75 reducers, and MSS SP-75 extensions and transition sections.
• Exclusions: MSS SP-75 Hot induction bends and MSS SP-75 girth weld requirements (covered by ASME B31 Codes) are outside its scope.
• Special Conditions: Allows for MSS SP-75 fittings made to special dimensions or materials by agreement, with appropriate "Part" marking for partial compliance.
• PSL2 Requirements: MSS SP-75 fittings specified as “PSL2” automatically invoke additional requirements (SR-24) complementary to PSL2 line pipe in the API 5L Specification for Line Pipe.

Dipti Metal Industries, as a global MSS SP-75 supplier and worldwide MSS SP-75 exporter, ensures that our manufacturing processes and product offerings align precisely with these defined parameters, providing MSS SP-75 fittings tailored for the most demanding pipeline environments.

Key Provisions & Requirements of MSS SP-75 (Latest Edition)

This standard details a multitude of critical requirements to ensure the high performance and safety of MSS SP-75 butt-welding fittings:

• Pressure Ratings (Section 2): Mandates that allowable internal-pressure ratings for MSS SP-75 pipe fittings are calculated as for straight seamless pipe of equivalent grade, diameter, and wall thickness according to applicable ASME B31 Codes. MSS SP-75 fittings must withstand field hydrostatic test pressure equivalent to the specified minimum yield strength of the mating pipe.
• Design (Section 2.5): Design for MSS SP-75 fittings must be established by mathematical analyses from recognized codes (e.g., ASME B31.3, ASME BPVC Section VIII, Division 2), or through comprehensive proof testing (Section 4 of MSS SP-75), experimental stress analysis, or detailed stress analysis with validation.
• Materials (Section 6): Steel for MSS SP-75 fittings must be killed, fine-grain practice, and suitable for field welding. Materials can be forgings, plate, seamless or fusion-welded tubular products. Specific guidance on thermomechanical controlled process (TMCP) plate is provided.
• Chemical Composition (Section 7): Requires product analysis for each heat of MSS SP-75 steel, adherence to maximum element limits (Table 1 of MSS SP-75), and calculation of Carbon Equivalent (not to exceed 0.45%). Traceability of analysis is mandatory.
• Tensile Properties (Section 8): MSS SP-75 fittings must meet specified tensile requirements (Table 2 of MSS SP-75), including yield strength, tensile strength, and elongation. Testing is performed on specimens from the MSS SP-75 fitting or integral prolongation after heat treatment.
• Heat Treatment (Section 9): All MSS SP-75 fittings must be heat-treated by a trained operator. Procedures include Stress Relieving, Normalizing, Normalizing & Tempering, or Quenching & Tempering. Strict controls on furnace temperature uniformity and calibration are enforced.
• Notch-Toughness Properties (Section 11): Specifies Charpy V-notch testing for base metal and weld of MSS SP-75 fittings, with minimum average absorbed energy and individual specimen values. Notch-toughness testing is generally required for NPS 14 and larger (with some exceptions).
• MSS SP-75 Fitting Dimensions & Tolerances (Sections 12 & 13): Provides detailed tables (Tables 3-9 of the MSS SP-75 standard) for dimensions of MSS SP-75 elbows, MSS SP-75 reducing elbows, MSS SP-75 straight tees, MSS SP-75 reducing outlet tees, MSS SP-75 caps, and MSS SP-75 reducers for NPS 16 and larger. Minimum wall thickness and welding end preparation are specified.
• Manufacture (Section 14): Requires a documented Manufacturing Procedure Specification (MPS) for MSS SP-75 fittings, outlining forming methods, welding procedures, heat treatment, machining, inspection, and traceability. Prohibits certain fabricated fittings and specifies welding fabrication requirements (e.g., full penetration butt welds, NDE of welds).
• Nondestructive Examination (NDE) (Section 15): Mandates Radiographic Examination (RT) for MSS SP-75 butt welds (unless otherwise agreed), Magnetic Particle (MP/MT) or Ultrasonic (UT) for fillet and other welds, and MP/MT or Liquid Penetrant (LP/PT) for MSS SP-75 cold-formed tees.
• Quality Control (Section 16): Requires a robust QC program covering all aspects of manufacturing, heat treatment, testing, inspection, material traceability, and documentation for MSS SP-75 fittings. Specifies Certified Material Test Reports (CMTRs) and record retention.
• Marking (Section 17): Details mandatory marking information on the outside diameter of MSS SP-75 fittings, including manufacturer, wall thickness, grade (e.g., MSS SP-75 WPHY60/X70), heat code, size, and special conditions like "SEGM", "CE", "PART", "PT", "MT", "SOUR", or "PSL2".

We are the biggest MSS SP-75 fittings stockist and largest MSS SP-75 fittings manufacturer in India.

Materials & Testing Compliance for MSS SP-75 Fittings (Latest Edition)

Dipti Metal Industries is a leading MSS SP-75 fittings manufacturer and supplier of MSS SP-75 fittings fully compliant with the material and testing requirements of MSS SP-75 (latest edition). Our range includes high-strength, low-alloy steel MSS SP-75 butt-welding fittings designed for severe service conditions.

Overview of Material Properties and Limits (Referencing MSS SP-75, Tables 1 & 2):

The MSS SP-75 standard provides detailed tables for chemical composition limits and tensile requirements. Dipti Metal Industries ensures that our MSS SP-75 fittings, such as MSS SP-75 WPHY42 pipe fittings, MSS SP-75 WPHY46 pipe fittings, and MSS SP-75 WPHY52 pipe fittings, meet these specifications rigorously.

• Yield Strength: MSS SP-75 mandates minimum yield strengths ranging from 42,000 psi (for WPHY42) up to 80,000 psi (for WPHY80).
• Tensile Strength: Corresponding minimum tensile strengths are specified, ensuring the material can withstand maximum applied stress.
• Elongation: Minimum elongation percentages are provided to guarantee sufficient ductility.
• Chemical Composition: Strict maximum limits are set for elements like Carbon, Manganese, Phosphorus, Sulfur, Copper, Nickel, Silicon, Chromium, Molybdenum, Vanadium, Niobium, Titanium, and Boron. Carbon Equivalent calculation is also critical.

Dipti Metal Industries, as a top MSS SP-75 supplier in Mumbai, strictly adheres to these limits and conducts thorough chemical analysis using methods like PMI (Positive Material Identification) to ensure compliance for all MSS SP-75 fittings. Detailed tables (Table 1 and Table 2) are available in the full MSS SP-75 standard document.

Heat Treatment Procedures (per Section 9 of MSS SP-75, Latest Edition):

All our MSS SP-75 fittings undergo controlled heat treatment processes to achieve desired mechanical properties and microstructure:

• Stress Relieving: Used primarily for guide bar welds, involving heating below the transformation range (not less than 1000 °F), holding, and controlled cooling.
• Normalizing: Uniform reheating above the austenite range, sufficient holding time for uniform temperature, followed by air cooling.
• Normalizing & Tempering: A two-step process involving normalizing followed by reheating to a temperature below the transformation range (not less than 1000 °F), holding, and controlled cooling.
• Quenching & Tempering: Uniform reheating above the transformation range, immediate immersion quenching in a suitable liquid, followed by reheating and tempering. Our quenching facilities are designed for proper and uniform cooling to ensure the integrity of MSS SP-75 fittings.

Our heat treatment processes for MSS SP-75 fittings are meticulously controlled and documented to ensure optimal mechanical properties and microstructure, aligning with the stringent requirements of MSS SP-75 (latest edition).

Design & Proof Testing in Accordance with MSS SP-75 (Latest Edition)

The MSS SP-75 standard places significant emphasis on the design validation of MSS SP-75 fittings to ensure they can withstand the rigorous demands of high-pressure service. Dipti Metal Industries ensures that our MSS SP-75 fittings are designed and verified using approved methods:

• Design Methods: MSS SP-75 fittings are designed using mathematical analyses from recognized codes (e.g., ASME B31.3, ASME BPVC Section VIII, Division 2), or through comprehensive proof testing (Section 4 of MSS SP-75), experimental stress analysis, or detailed stress analysis with validation.
• Proof Test Assembly: Each MSS SP-75 fitting type is tested, with specific criteria for qualifying other fittings based on geometry and manufacturing method (e.g., MSS SP-75 short radius elbows can qualify MSS SP-75 long radius elbows). Straight pipe sections are welded to the MSS SP-75 fitting ends for hydrostatic testing.
• Test Procedure: Testing involves applying hydrostatic pressure (water or other liquid) to the assembly until rupture or held at a computed minimum proof pressure for at least three minutes. A "testing factor" (f) is applied based on the number of specimens tested to ensure adequate safety margins for MSS SP-75 fittings.
• Test Report: Detailed reports are prepared for each MSS SP-75 test assembly, including descriptions, instrumentation, material test reports, actual pressures, rupture location (if any), calculations, and actual measured thickness in critical areas.

This stringent approach to design and testing ensures that every MSS SP-75 fitting supplied by Dipti Metal Industries is certified for the demanding pressure applications it is intended for. We are a top MSS SP-75 manufacturer in India.

Manufacture & Workmanship for MSS SP-75 Compliant Fittings (Latest Edition)

Manufacturing excellence and meticulous workmanship are hallmarks of MSS SP-75 (latest edition) compliance. Dipti Metal Industries employs state-of-the-art processes and strict controls for all our MSS SP-75 fittings:

• Manufacturing Procedure Specification (MPS): All MSS SP-75 fittings are manufactured according to a documented MPS, specifying product form, welding NDE results, forming method (forging, hammering, pressing, rolling, extruding, upsetting, expanding, welding, or combinations), heat treatment, machining, inspection, dimensions, test requirements, and traceability.
• Welding Fabrication (Section 14.4 of MSS SP-75): Seam-welded pipe must comply with applicable ASTM or API specifications. Other welds for MSS SP-75 fittings are made by welders and procedures qualified to ASME BPVC Section IX. All MSS SP-75 butt welds require full penetration, with at least one pass from the inside, and backing rings are prohibited.
• Workmanship and Finish (Section 14.5 of MSS SP-75): MSS SP-75 fittings must be free of injurious defects and have a workmanlike finish to allow visual inspection. Injurious defects (those reducing wall thickness below specified minimum) require purchaser approval for repair, followed by qualified welding procedures, NDE, and post-weld heat treatment.
• Minimum Bore: The minimum bore throughout any MSS SP-75 fitting must be at least 93% of the nominal pipe inside diameter, unless otherwise agreed upon.
• Segmentable Elbows: For MSS SP-75 elbows intended for field segmenting, specific out-of-round (OOR) tolerances are applied, and they are marked “SEGM”. Recommendations for minimizing difficulties during field segmenting are provided in Appendix X3 of MSS SP-75.

Our commitment to these detailed manufacturing and workmanship standards ensures that our MSS SP-75 butt-welding fittings consistently deliver superior quality and performance. We are a leading MSS SP-75 manufacturer in Mumbai.

Quality Control & Certification for MSS SP-75 Products (Latest Edition)

A rigorous quality control (QC) program is central to MSS SP-75 (latest edition). Dipti Metal Industries maintains an ISO 9001 certified QC system that ensures every MSS SP-75 fitting meets all standard requirements:

• QC Program: Our program controls the entire manufacturing process, heat treatment, testing, inspection, material traceability from raw material to final product, and all necessary documentation for MSS SP-75 fittings. Control and verification of sub-supplier activities are integral.
• Inspection Test Plan (ITP): We adhere to a comprehensive ITP, detailing mandatory tests for chemical analysis, tensile properties (base metal and weld), impact testing (base metal and weld), visual inspection, RT/UT of weld seams, MP/LP of MSS SP-75 cold-formed tees, and dimensional checks. Optional tests (e.g., hardness, sour gas applications, ultrasonic body examination) are performed if specified by the purchaser (refer to Section 16.3.1 of MSS SP-75 for full ITP requirements).
• Certified Material Test Report (CMTR): A CMTR is furnished for each lot of MSS SP-75 fittings, confirming full compliance. It includes actual results for chemical analysis (including carbon equivalent), mechanical properties (with specimen details), notch-toughness properties (with test temperature), heat treatment details, NDE results, any special tests, and a part description matching the marking. Unless otherwise specified, the latest edition of MSS SP-75 shall apply and be indicated on the CMTR.
• Material Traceability: Documented procedures ensure heat and lot identity throughout the supply chain, allowing traceability to chemical and mechanical test results for any MSS SP-75 fitting.
• Records Retention: Records are retained for a minimum of three years and made available to the purchaser upon request.
• Third-Party Inspection (TPI): We regularly facilitate inspections by world-renowned third-party agencies (e.g., TUV, Bureau Veritas, SGS, DNV) to provide an additional layer of assurance for our MSS SP-75 fittings.

This comprehensive QC framework underscores our dedication to supplying only the highest quality MSS SP-75 fittings compliant with MSS SP-75 (latest edition). We are a top MSS SP-75 supplier in India.

Applications for MSS SP-75 Compliant Butt-Welding Fittings (Latest Edition)

The high-strength, wrought butt-welding fittings manufactured to MSS SP-75 (latest edition) are essential for the most demanding applications in several critical industries. Dipti Metal Industries, as a global MSS SP-75 fittings supplier, supplies these reliable components worldwide for:

• MSS SP-75 High Pressure Gas Transmission Pipelines: For the safe and efficient long-distance transport of natural gas.
• MSS SP-75 Oil Transmission Pipelines: Including crude oil and refined petroleum products under high operating pressures.
• MSS SP-75 Compressor Stations: Critical for piping systems where gas pressure is increased.
• MSS SP-75 Metering and Regulating Stations: Ensuring accurate measurement and controlled pressure in gas and oil distribution.
• MSS SP-75 Petrochemical Plants: In processes requiring robust, high-strength piping for various hydrocarbons.
• MSS SP-75 Power Generation Facilities: For high-pressure steam and water lines where fitting integrity is paramount.
• MSS SP-75 Offshore Platforms: For subsea and platform piping systems exposed to extreme pressures and environmental conditions.

Our expertise in producing MSS SP-75 fittings to this standard makes us a trusted partner for projects demanding the utmost in performance and safety, complementing products like API 5L Line Pipes and other piping materials. We are a top MSS SP-75 exporter in India.

Why Choose Dipti Metal Industries for Your MSS SP-75 Compliant Fittings (Latest Edition) Needs? Your Global Advantage

• Full Compliance & Expertise: Dipti Metal Industries ensures full and rigorous compliance with all aspects of MSS SP-75 (latest edition). Our deep understanding of this standard allows us to provide expert guidance and reliable MSS SP-75 fittings for your most critical high-pressure applications. We are a leading MSS SP-75 fittings manufacturer in Mumbai.
• Advanced Manufacturing: Utilizing state-of-the-art manufacturing processes, precision machining, and controlled heat treatments, we produce MSS SP-75 fittings with superior mechanical properties, dimensional accuracy, and exceptional weldability, all certified to MSS SP-75.
• Certified Materials: We source only killed, fine-grain steels suitable for demanding service, ensuring chemical composition and tensile properties strictly adhere to MSS SP-75 Table 1 and Table 2, providing the necessary strength for MSS SP-75 high-pressure pipelines. We are the biggest MSS SP-75 fittings stockist.
• Uncompromising Quality Assurance: Our ISO 9001 certified QC program includes comprehensive NDE (RT, UT, MP/MT, LP/PT), rigorous mechanical testing, and full EN 10204 3.1 MTC traceability, offering complete confidence in our MSS SP-75 fittings' integrity.
• Global Supply Chain & Logistics: As a leading worldwide MSS SP-75 exporter, we guarantee efficient and timely delivery of MSS SP-75 compliant fittings to project sites across over 190 countries, supported by robust export packaging and streamlined customs.
• Competitive Value: We deliver premium, high-performance MSS SP-75 fittings compliant with the highest standards at competitive prices, ensuring optimal project cost-efficiency without compromising safety or longevity. We are a top MSS SP-75 supplier in India.

Get a Quote Today for Your MSS SP-75 Compliant Butt-Welding Fittings (Latest Edition) Requirements!

Are you searching for dependable, high-strength, wrought butt-welding fittings that meet the exacting specifications of MSS SP-75 (latest edition) for your critical oil & gas transmission, power generation, or petrochemical projects? Contact Dipti Metal Industries, your expert global MSS SP-75 fittings manufacturer, MSS SP-75 high yield fittings stockist, and worldwide MSS SP-75 exporter, today to discuss your specific requirements or to request a personalized, custom quote. Our knowledgeable and responsive team is dedicated to providing you with the most effective, safest, and most reliable MSS SP-75 butt-welding fitting solutions. We guarantee long-term operational excellence, enhanced product integrity, and unparalleled project success in demanding industrial environments. We are the best and leading partner for all your MSS SP-75 high-yield pipe fitting needs, offering a large and comprehensive range with top quality, including MSS SP-75 ASTM A860 WPHY42 fittings and MSS SP-75 ASTM A860 WPHY46 fittings.

Price guidance (non-binding): USD 5.00–4,000.00 per unit/kg depending on MSS SP-75 fitting type (e.g., MSS SP-75 Elbow, MSS SP-75 Tee, MSS SP-75 Reducer, MSS SP-75 Cap), size, schedule, WPHY grade, quantity, and delivery terms. Final prices are quotation-based for these essential industrial piping components.
