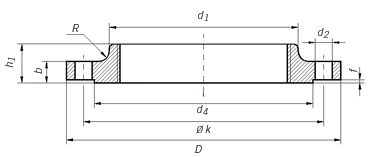

Our Products Flanges DIN Norm Flanges Threaded Flanges Threaded Flanges DIN 2566 PN10 Rated Diameter d1 Flange Neck Raised face Screws Weight of a flange (7,85 Kg/dm3) Thread D b k h1 d3 d4 f Number Thread d2 Kg 15 21,3 R 1/2 95 14 65 20 35 45 2 4 M 12 14 0,613 20 26,9 R 3/4 105 16 75 24 45 58 2 4 M 12 14 0,91 25 33,7 R 1 115 16 85 24 52 68 2 4 M 12 14 1,1 32 42,4 R 1 1/4 140 16 100 26 60 78 2 4 M 16 18 1,6 40 48,3 R 1 1/2 150 16 110 26 70 88 3 4 M 16 18 1,78 50 60,3 R 2 165 18 125 28 85 102 3 4 M 16 18 2,43 65 76,1 R 2 1/2 185 18 145 32 105 122 3 4 M 16 18 3,18 80 88,9 R 3 200 20 160 34 118 138 3 8 M 16 18 4,12 100 114,3 R 4 220 20 180 38 140 158 3 8 M 16 18 4,47 125 139,7 R 5 250 22 210 40 168 188 3 8 M 16 18 6,13 150 165,1 R 6 285 22 240 44 195 212 3 8 M 20 22 7,92
