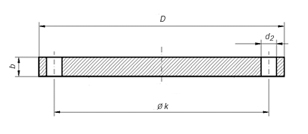

Blind Flanges EN 1092-1 TYPE 05 PN10
| Rated Diameter |
Flange |
Screws |
Weight of a flange (7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 200 |
295 |
340 |
24 |
22 |
M20 |
8 |
16,500 |
| 250 |
350 |
395 |
26 |
22 |
M20 |
12 |
24,100 |
| 300 |
400 |
445 |
26 |
22 |
M20 |
12 |
30,800 |
| 350 |
460 |
505 |
26 |
22 |
M20 |
16 |
39,600 |
| 400 |
515 |
565 |
26 |
26 |
M24 |
16 |
49,400 |
| 450 |
565 |
615 |
28 |
26 |
M24 |
20 |
63,000 |
| 500 |
620 |
670 |
28 |
26 |
M24 |
20 |
75,200 |
| 600 |
725 |
780 |
34 |
30 |
M27 |
20 |
124,000 |
| 700 |
840 |
895 |
38 |
30 |
M27 |
24 |
183,000 |
| 800 |
950 |
1015 |
48 |
33 |
M30 |
24 |
297,000 |
| 900 |
1050 |
1115 |
50 |
33 |
M30 |
28 |
374,000 |
| 1000 |
1160 |
1230 |
54 |
36 |
M33 |
28 |
492,000 |
| 1200 |
1380 |
1455 |
66 |
39 |
M36 |
32 |
842,000 |
|
