Flanges
EN Norm Flanges
Blind Flanges

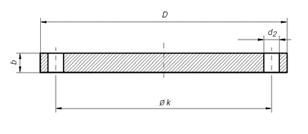

Blind Flanges EN 1092-1 TYPE 05 PN16
| Rated Diameter |
Flange |
Screws |
Weight of a flange (7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
65 |
95 |
16 |
14 |
M12 |
4 |
0,813 |
| 20 |
75 |
105 |
18 |
14 |
M12 |
4 |
1,140 |
| 25 |
85 |
115 |
18 |
14 |
M12 |
4 |
1,380 |
| 32 |
100 |
140 |
18 |
18 |
M16 |
4 |
2,030 |
| 40 |
110 |
150 |
18 |
18 |
M16 |
4 |
2,350 |
| 50 |
125 |
165 |
18 |
18 |
M16 |
4 |
2,880 |
| 65 |
145 |
185 |
18 |
18 |
M16 |
4 |
3,643 |
| 80 |
160 |
200 |
20 |
18 |
M16 |
8 |
4,610 |
| 100 |
180 |
220 |
20 |
18 |
M16 |
8 |
5,650 |
| 125 |
210 |
250 |
22 |
18 |
M16 |
8 |
8,130 |
| 150 |
240 |
285 |
22 |
22 |
M20 |
8 |
10,500 |
| 200 |
295 |
340 |
24 |
22 |
M20 |
12 |
16,200 |
| 250 |
355 |
405 |
26 |
26 |
M24 |
12 |
25,000 |
| 300 |
410 |
460 |
28 |
26 |
M24 |
12 |
35,100 |
| 350 |
470 |
520 |
30 |
26 |
M24 |
16 |
48,000 |
| 400 |
525 |
580 |
32 |
30 |
M27 |
16 |
63,500 |
| 450 |
585 |
640 |
40 |
30 |
M27 |
20 |
96,600 |
| 500 |
650 |
715 |
44 |
33 |
M30 |
20 |
133,000 |
| 600 |
770 |
840 |
54 |
36 |
M33 |
20 |
226,000 |
| 700 |
840 |
910 |
58 |
36 |
M33 |
24 |
285,000 |
| 800 |
950 |
1025 |
62 |
39 |
M36 |
24 |
388,000 |
| 900 |
1050 |
1125 |
64 |
39 |
M36 |
28 |
483,000 |
| 1000 |
1170 |
1255 |
68 |
42 |
M39 |
28 |
640,000 |
|
