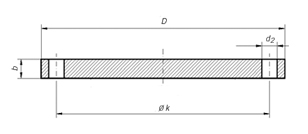

Blind Flanges EN 1092-1 TYPE 05 PN6
 |
|
| Rated Diameter |
Flange |
Screws |
Weight of a flange (7,85 Kg/dm3) |
| k |
D |
b |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
55 |
80 |
12 |
11 |
M10 |
4 |
0,438 |
| 20 |
65 |
90 |
14 |
11 |
M10 |
4 |
0,657 |
| 25 |
75 |
100 |
14 |
11 |
M10 |
4 |
0,821 |
| 32 |
90 |
120 |
14 |
14 |
M12 |
4 |
1,180 |
| 40 |
100 |
130 |
14 |
14 |
M12 |
4 |
1,390 |
| 50 |
110 |
140 |
14 |
14 |
M12 |
4 |
1,620 |
| 65 |
130 |
160 |
14 |
14 |
M12 |
4 |
2,140 |
| 80 |
150 |
190 |
16 |
18 |
M16 |
4 |
3,430 |
| 100 |
170 |
210 |
16 |
18 |
M16 |
4 |
4,220 |
| 125 |
200 |
240 |
18 |
18 |
M16 |
8 |
6,100 |
| 150 |
225 |
265 |
18 |
18 |
M16 |
8 |
7,510 |
| 200 |
280 |
320 |
20 |
18 |
M16 |
8 |
12,300 |
| 250 |
335 |
375 |
22 |
18 |
M16 |
12 |
18,500 |
| 300 |
395 |
440 |
22 |
22 |
M20 |
12 |
25,500 |
| 350 |
445 |
490 |
22 |
22 |
M20 |
12 |
31,800 |
| 400 |
495 |
540 |
22 |
22 |
M20 |
16 |
38,500 |
| 450 |
550 |
595 |
24 |
22 |
M20 |
16 |
51,200 |
| 500 |
600 |
645 |
24 |
22 |
M20 |
20 |
60,100 |
| 600 |
705 |
755 |
30 |
26 |
M24 |
20 |
103,000 |
| 700 |
810 |
860 |
40 |
26 |
M24 |
24 |
178,000 |
| 800 |
920 |
975 |
44 |
30 |
M27 |
24 |
252,000 |
| 900 |
1020 |
1075 |
48 |
30 |
M27 |
24 |
336,000 |
| 1000 |
1120 |
1175 |
52 |
30 |
M27 |
28 |
435,000 |
| 1200 |
1340 |
1405 |
60 |
33 |
M30 |
32 |
717,000 |
| 1400 |
1560 |
1630 |
68 |
36 |
M33 |
36 |
1.094,000 |
| 1600 |
1760 |
1830 |
76 |
36 |
M33 |
40 |
1.545,000 |
| 1800 |
1970 |
2045 |
84 |
39 |
M36 |
44 |
2.131,000 |
| 2000 |
2180 |
2265 |
92 |
42 |
M39 |
48 |
2.862,000 |
|
