Spiral Wound Gaskets - Leading Manufacturer, Exporter, Stockist & Supplier for Extreme & Fluctuating Conditions
DIPTI METAL INDUSTRIES – Your Premier Global Partner for High-Performance, Durable, and Fire-Safe Spiral Wound Gaskets. Established in 2009, we are an ISO 9001:2015 certified firm based in Mumbai, India, recognized as the leading Spiral Wound Gaskets manufacturer in Mumbai and a top ASME B16.20 certified exporter in India. We specialize in highly engineered semi-metallic Spiral Wound Gaskets (SWG), indispensable in the most demanding industrial applications. Our SWGs provide exceptionally effective and reliable solutions in environments characterized by high pressures (up to 2500 lb class), extreme temperatures (from cryogenic to 1000°C+, depending on filler), and significant fluctuations in both operating pressure and temperature. Widely acclaimed for their unique construction that offers outstanding resilience, superior recovery, and inherent resistance to blow-out, our precision-engineered SWG gaskets are absolutely crucial for ensuring leak-free operation, enhanced safety, and long-term integrity in critical piping systems, pressure vessels, and process equipment.
Our Spiral Wound Gaskets are expertly fabricated by concentrically winding a pre-formed metallic strip (or "winding") together with a soft, resilient filler material (e.g., flexible graphite, PTFE, or mica). This unique spiral construction provides a spring-like action, allowing the gasket to dynamically adapt to flange movements and maintain a tight seal under varying conditions. Dipti Metal offers a comprehensive portfolio that includes Basic (Style R), Inner Ring (Style RIR), Outer Ring (Style CG), and Inner & Outer Ring (Style CGI) spiral wound gaskets, available with an extensive range of metallic winding and filler material combinations to meet the exacting and dynamic demands of critical sectors such as petrochemical refining, power generation, chemical processing, oil & gas, and general heavy industries. We are steadfastly committed to supplying **reliable, durable, and certified SWG sealing solutions** that not only ensure optimal operational efficiency but also significantly uphold the integrity and safety of sensitive industrial infrastructure worldwide. We maintain a large stock to serve as the biggest multi-grade SWG gaskets stockist, ensuring immediate dispatch for urgent industrial needs globally. Every gasket is supplied with full material traceability via EN 10204 3.1 MTCs, validating our position as a top material supplier for critical industrial service.
Overview & Importance: Why Choose a Leading Spiral Wound Gaskets Manufacturer
Spiral Wound Gaskets (SWG) are highly engineered semi-metallic gaskets renowned for their resilience and superior sealing performance in the most demanding industrial applications. They are indispensable in environments characterized by high pressures, extreme temperatures, and significant fluctuations in both operating pressure and temperature. Their unique construction provides a "spring-like" action, enabling them to dynamically adapt to flange movements and maintain a tight, leak-free seal even under varying conditions.
As a major global Spiral Wound Gaskets manufacturer and High-Performance Gasket supplier in Mumbai, DIPTI METAL INDUSTRIES provides an extensive and advanced range of these essential semi-metallic gaskets. Our SWGs are expertly fabricated by concentrically winding a pre-formed metallic strip (or "winding") together with a soft, resilient filler material (e.g., flexible graphite, PTFE, or mica). The metallic windings provide structural strength and recovery, while the soft filler ensures excellent conformability to flange irregularities and a positive seal. Dipti Metal offers a comprehensive portfolio that includes **Basic (Style R), Inner Ring (Style RIR), Outer Ring (Style CG), and Inner & Outer Ring (Style CGI) spiral wound gaskets**. Available with an extensive range of metallic winding and filler material combinations, they meet the exacting demands of critical sectors such as petrochemical refining, power generation, chemical processing, oil & gas, and general heavy industries. We are steadfastly committed to supplying **reliable, durable, and certified SWG sealing solutions** that not only ensure optimal operational efficiency but also significantly uphold the integrity and safety of sensitive industrial infrastructure worldwide. Explore our full range of metallic gaskets and flexible graphite gaskets.
Key Features & Unmatched Benefits of Dipti Metal's Spiral Wound Gaskets
- Exceptional Resilience & High Recovery: The spiral construction provides a "spring-like" action, allowing the gasket to effectively compress and recover under fluctuating pressure and temperature conditions, maintaining a consistent seal.
- High Temperature & Pressure Resistance: Designed for severe service, SWGs can withstand extremely high operating temperatures (cryogenic to 1000°C+, depending on filler and metal) and high pressures (up to ASME Class 2500), outperforming many non-metallic gaskets.
- Superior Blow-out Resistance: The robust metallic winding, often supported by inner and/or outer rings, provides excellent structural integrity and inherent **blow-out resistance**, ensuring safety in critical applications.
- Fire Safe Certification (API 607 / API 6FB Compliant): Many of our spiral wound gaskets, particularly those with flexible graphite fillers, are designed and tested to be fire-safe, maintaining seal integrity during and after fire exposure.
- Broad Chemical Compatibility (Material Dependent): The choice of winding metal and filler material allows for precise tailoring to resist a vast array of corrosive chemicals, acids, alkalis, and hydrocarbons.
- Conformability to Imperfections: The soft filler material ensures excellent conformability to minor flange surface irregularities, enabling a tight seal even on imperfect flange faces with lower bolt loads than solid metal gaskets.
- Versatile Design Options: Available in multiple configurations (Basic, with inner ring, with outer ring, with both) to suit various flange types (Raised Face, Flat Face, Male & Female, Tongue & Groove) and application specific requirements.
- Cost-Effective for Large Diameters: Can be economically manufactured in very large diameters, offering a cost-efficient solution for large vessels and heat exchangers.
- Reduced Flange Damage: While offering robust sealing, the design helps prevent damage to expensive flange surfaces by allowing controlled compression.
Spiral Wound Gaskets: Comprehensive Types, Winding Metals & Filler Materials
DIPTI METAL INDUSTRIES offers a highly specialized and comprehensive range of Spiral Wound Gaskets (SWG), meticulously manufactured and available in various types, winding metals, and filler materials to perfectly match your specific operating conditions, demanding fluid compatibility, and exact flange sealing requirements. We provide custom-manufactured SWGs alongside all international standard dimensions and specifications, ensuring optimal fit, maximum performance, and full compliance for every critical application worldwide. Our SWGs are typically manufactured to ASME B16.20 for pipe flanges, and fire-safe designs comply with **API 607 / API 6FB**.
1. Types of Spiral Wound Gaskets (ASME B16.20 Styles):
Consists only of the metallic winding and soft filler material. No inner or outer rings. The outer diameter of the winding serves as the centering guide.
- Applications: Designed for Tongue and Groove, Male and Female, or Flat Face flanges. Limited to lower pressure classes or specific custom applications where inner/outer rings are not feasible or necessary.
Includes a solid inner metal ring in addition to the metallic winding and filler. The inner ring acts as a compression stop, prevents radial buckling (inward collapse) of the gasket, and minimizes erosion of the filler material by turbulent flow.
- Applications: Recommended for pipe flanges where conditions of high pressure, high temperature, or vacuum exist, or where media is toxic/corrosive. Often used on Male and Female, Tongue and Groove flanges.
Features a solid outer metal ring (centering ring) in addition to the metallic winding and filler. The outer ring accurately centers the gasket on the flange face, acts as a compression stop, and prevents outward bulging. It also protects the winding from environmental factors.
- Applications: The most common style, designed for use with Raised Face and Flat Face flanges in pressure classes 150 to 2500. Suitable for a wide range of general and demanding industrial services.

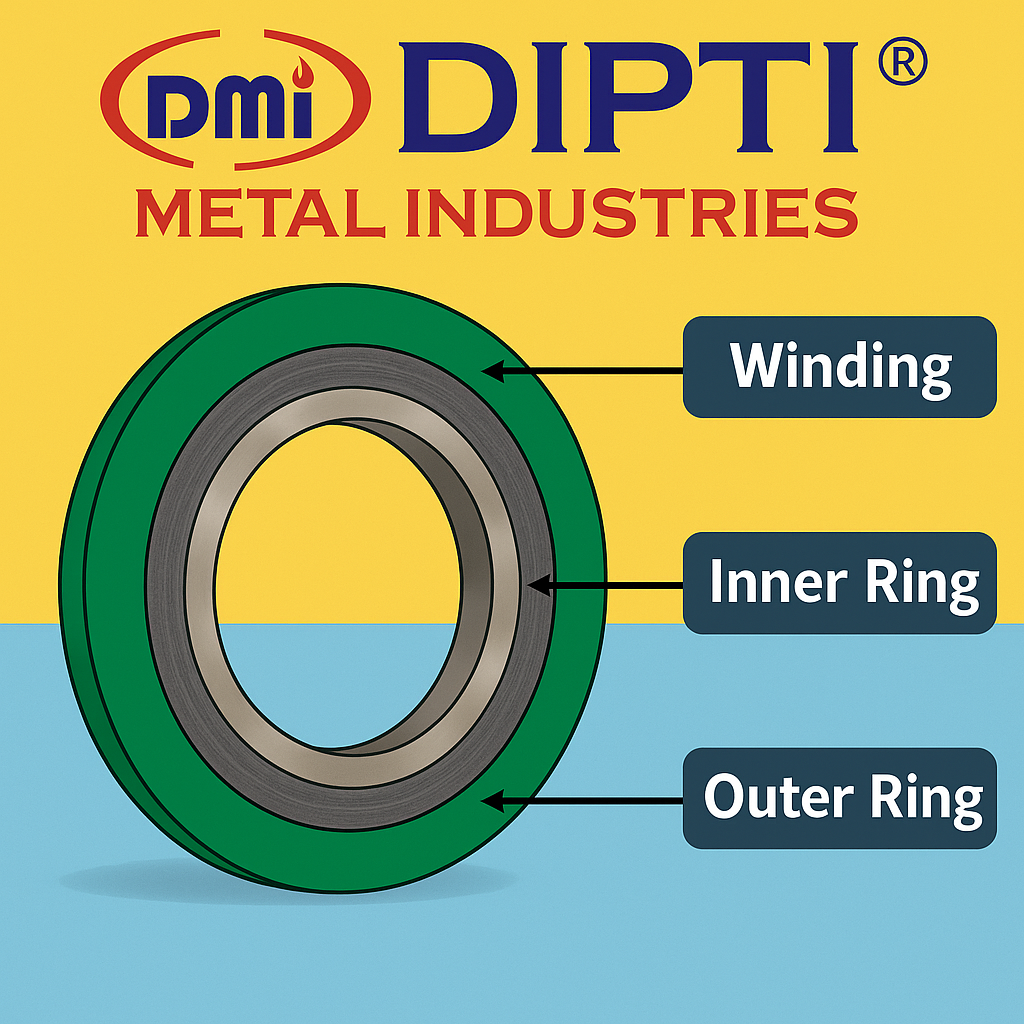

Incorporates both an inner and an outer solid metal ring, in addition to the metallic winding and filler. This provides the ultimate level of sealing integrity, compression control, radial buckling prevention, and protection.
- Applications: Recommended for Raised Face and Flat Face flanges in critical services, especially those with high pressure, high temperature, vacuum, and toxic or aggressive media. Offers superior performance in fluctuating conditions and is often preferred for fire-safe applications.
2. Winding Materials & Grades for Spiral Wound Gaskets:
The choice of winding metal provides structural integrity, strength, and much of the gasket's chemical and temperature resistance. All materials are fully traceable with certifications (e.g., EN 10204 3.1).
| Material | UNS Number / Grade | Key Properties & Applications |
|---|---|---|
| Stainless Steel (SS) | Widely used for general corrosion resistance and strength. | |
| - SS 304 / 304L | S30400 / S30403 | General purpose, good corrosion resistance. 'L' for improved weldability/lower carbon. |
| - SS 316 / 316L | S31600 / S31603 | Superior corrosion resistance (molybdenum), especially to chlorides. 'L' for improved weldability. |
| - SS 321 / 347 | S32100 / S34700 | Stabilized with Titanium/Niobium; excellent for high-temperature service where sensitization is a concern. |
| Duplex & Super Duplex SS | S31803 / S32205 (Duplex), S32750 / S32760 (Super Duplex) | High strength & superior resistance to pitting, crevice, and stress corrosion cracking; offshore & chemical. |
| Nickel & Nickel Alloys | Exceptional resistance to extreme corrosion, high temperatures. | |
| - Monel® 400 | N04400 | Excellent resistance to seawater, brine, and certain non-oxidizing acids. |
| - Inconel® 600 / 625 | N06600 / N06625 | High temperature strength & oxidation resistance, good for aggressive media. |
| - Incoloy® 800 / 825 | N08800 / N08825 | Good high-temperature strength and resistance to oxidizing/reducing acids. |
| - Hastelloy® C-276 / C-22 | N10276 / N06022 | Unrivaled resistance to a broad range of severe chemical environments. |
| Titanium | Gr. 2 | Outstanding corrosion resistance in chloride & oxidizing environments. |
| Carbon Steel | ASTM A283 Gr. C / A516 Gr. 70 | Economical for non-corrosive, lower temperature & pressure duties. |
3. Filler Materials & Grades for Spiral Wound Gaskets:
The filler material dictates the gasket's conformability, sealability, and much of its temperature and chemical resistance.
| Filler Material | Key Properties & Applications | Temperature Range (Guide) |
|---|---|---|
| Flexible Graphite | Superior high-temp. resistance, excellent chemical inertness (pH 0-14), outstanding resilience, fire-safe. | -200°C to +500°C (oxidizing), +3000°C (inert) |
| PTFE (Virgin or Expanded) | Exceptional chemical resistance (near universal), high purity, non-contaminating, low friction. | -240°C to +260°C |
| Mica | Extremely high-temperature resistance, good dielectric properties. Less compressible than graphite. | Up to +1000°C |
| Ceramic Fiber | Very high-temperature resistance, good thermal insulation. | Up to +1200°C+ |
| Non-Asbestos Fiber (CNAF) | Blend of aramid/inorganic fibers with rubber binders. General purpose, moderate temp/pressure. | -50°C to +250°C (binder dependent) |
Note: All materials are sourced from manufacturers who provide full traceability via EN 10204 3.1 Mill Test Certificates (MTCs). Our expertise as a top Spiral Wound Gaskets manufacturer in Mumbai ensures meticulous control over material properties and performance.
Spiral Wound Gaskets: Certifications & Quality Compliance
DIPTI METAL INDUSTRIES ensures that all Spiral Wound Gaskets we supply strictly conform to the highest international standards for design, manufacturing, and performance. This unwavering commitment guarantees optimal operational efficiency, safety, and reliability in critical industrial applications.
Note: Our deep understanding of these standards, coupled with rigorous internal and external verification, ensures that every Spiral Wound Gasket from Dipti Metal Industries performs exactly as specified in the most challenging conditions.
Applications: Where Top Spiral Wound Gaskets Exporters in India Deliver Critical Sealing
DIPTI METAL INDUSTRIES' high-performance Spiral Wound Gaskets (SWG) are widely trusted and utilized in a broad spectrum of critical industrial sectors and countless applications, consistently ensuring leak-free operations, robust system integrity, and enhanced safety in the most demanding and fluctuating environments:
- Petrochemical & Chemical Processing: Indispensable for sealing flanges in reactors, distillation columns, heat exchangers, valves, and pipelines handling aggressive chemicals, hydrocarbons, and high-temperature/pressure process fluids.
- Power Generation Plants (Thermal, Nuclear): Critical for high-pressure and high-temperature steam systems, turbines, boiler feed water lines, condensers, and heat recovery steam generators (HRSG).
- Oil & Gas (Upstream, Midstream, Downstream): Widely used in refineries, offshore platforms, pipelines, wellhead equipment, and processing facilities for extreme pressure, temperature, and corrosive conditions, often requiring fire-safe certification.
- Pressure Vessels & Heat Exchangers: Ensuring high-integrity seals for critical containment applications, especially where thermal cycling and differential expansion are concerns.
- Valves, Pumps & Compressors: For bonnets, covers, and static seals in pumps, valves, and compressors exposed to harsh operating conditions and fluctuating loads.
- Cryogenic Applications: Specific filler materials (e.g., PTFE, specially treated graphite) make SWGs suitable for liquefied natural gas (LNG), liquid oxygen (LOX), and other low-temperature fluid handling systems.
- Pulp & Paper Mills: Providing reliable seals in various processing equipment where high temperatures and chemical resistance to pulping liquors and process chemicals are required.
- Marine & Shipbuilding: In engine room equipment, steam lines, and exhaust systems where robust and corrosion-resistant seals are required.
- Flue Gas Desulphurization (FGD) Systems: Where resistance to corrosive gases, acids, and high temperatures is necessary.
DIPTI METAL INDUSTRIES, as a reliable Mumbai-based Spiral Wound Gaskets manufacturer, ASME B16.20 certified supplier, and High-Performance Gasket exporter, is ready to supply your project needs for these critical sealing solutions with guaranteed quality and international compliance, ensuring the safest, most efficient, and longest-lasting operation of your high-pressure systems.
Uncompromising Quality Assurance & Certifications for Spiral Wound Gaskets
Quality is the paramount concern at DIPTI METAL INDUSTRIES. We are a top supplier and manufacturer committed to operating under stringent ISO 9001 certified quality management systems, ensuring that every Spiral Wound Gasket leaving our facility is fully traceable and meets the highest industry benchmarks. Our commitment to quality extends from meticulous sourcing of certified raw materials (both metallic windings and soft fillers) to precision winding, rigorous testing, and secure packaging, guaranteeing gaskets that perform reliably and safely in their intended extreme pressure and temperature applications.
- All International Certifications & Test Certificates: Every Spiral Wound Gasket is supplied with all mandatory international certifications and all test certificates, including EN 10204 3.1 Mill Test Certificates (MTCs) for all raw materials (winding metals and fillers). These verify chemical composition, mechanical properties, and full compliance directly from the source, a key aspect of our certified quality for all our spiral wound gaskets.
- Rigorous Manufacturing, Inspection & Testing: Our Spiral Wound Gaskets undergo comprehensive visual and dimensional inspections throughout the manufacturing process. Key testing includes:
- Dimensional Accuracy: Precise verification of inner ring, outer ring, and winding dimensions against ASME B16.20 and client specifications using advanced measurement tools, ensuring critical fit-up.
- Material Verification: Spectro analysis (PMI - Positive Material Identification for metallic windings) to verify correct alloy composition.
- Hardness Testing: Performed on metallic components to confirm compliance with material specifications.
- Leakage Testing: May include helium mass spectrometer leak testing for critical applications or hydrostatic/pneumatic seat leakage testing (on assembled flanges, where applicable) to verify seal integrity.
- Fire-Safe Testing: For API 607/6FB compliant gaskets, periodic destructive fire tests are performed to ensure seal integrity during and after fire exposure.
- Compression & Recovery Testing: To verify the gasket's resilience and ability to maintain a seal under fluctuating conditions.
- Visual Inspection: Examination for winding defects, proper filler material integration, burrs, sharp edges, and other imperfections.
- Third-Party Inspection (TPI) Facilitated: We regularly facilitate inspections by world-renowned third-party agencies such as TUV, Bureau Veritas (BV), Lloyd's Register (LR), SGS, DNV, and other client-nominated inspectors, to provide an additional layer of assurance and compliance verification, reinforcing our position as a leading global Spiral Wound Gaskets manufacturer and ASME B16.20 certified exporter of reliable high-performance metallic gaskets.
- Industry-Specific Compliance: We routinely supply Spiral Wound Gaskets with full compliance to major international standards (e.g., PED, NORSOK, NACE MR0175/ISO 15156 for sour service) and client project specifications for sectors like Petrochemical, Power Generation, and Oil & Gas, ensuring all our gaskets are fit for critical high-pressure and high-temperature sealing.
Global Export Network: Worldwide Distributor & Exporter of Spiral Wound Gaskets
DIPTI METAL INDUSTRIES is a proud Worldwide Exporter, Global Supplier, Leading Dealer, and Major Stockist of Spiral Wound Gaskets in all grades and types, with an extensive network that extends to **over 190 countries worldwide**. We ensure timely and compliant delivery of our premium precision-engineered metallic gaskets to major industrial hubs and critical infrastructure projects across the globe, with a strong focus on **Petrochemical**, **Power Generation**, **Oil & Gas**, **Chemical Processing**, and **Cryogenic sectors worldwide**, solidifying our position as a top international trading partner for these essential high-integrity sealing solutions. The countries and cities listed below highlight our established key markets and are illustrative of our truly global reach for Spiral Wound Gaskets.
Explore Our Spiral Wound Gaskets Extensive Global Reach (Illustrative Markets)
- Germany: Frankfurt, Hamburg, Munich, Berlin (Primary for Power Generation, Chemical Plants, Heavy Engineering)
- United Kingdom: London, Manchester, Aberdeen, Glasgow (Primary for Oil & Gas, Energy, Offshore)
- France: Paris, Lyon, Marseille (Key for Energy, Nuclear, Petrochemical Facilities)
- Italy: Milan, Rome, Genoa (Key for Petrochemical, Power Sector, Industrial)
- Netherlands: Rotterdam, Amsterdam (Primary for Refineries, Offshore, Chemical Processing)
- Spain: Madrid, Barcelona, Valencia (Key for Industrial Infrastructure, Power, Petrochemical)
- Sweden: Stockholm, Gothenburg (Advanced Energy, Offshore)
- Belgium: Brussels, Antwerp (Chemical, Petrochemical)
- Austria: Vienna, Graz (Industrial, Energy)
- Switzerland: Zurich, Geneva (High-Tech Industrial, Power)
- Portugal: Lisbon, Porto (Power, Heavy Industrial)
- Ireland: Dublin, Cork (Energy, Specialized Chemical)
- Norway: Oslo, Stavanger (Offshore Oil & Gas, demanding environments)
- Denmark: Copenhagen, Aarhus (Energy, Industrial)
- Finland: Helsinki, Tampere (Power, Heavy Industry)
- Poland: Warsaw, Krakow (Large Industrial Projects, Power Generation)
- Czech Republic: Prague, Brno (Industrial Manufacturing, Energy)
- Hungary: Budapest, Debrecen (Power, Chemical)
- Greece: Athens, Thessaloniki (Power Plants, Industrial)
- Romania: Bucharest, Cluj-Napoca (Energy Sector, Industrial Growth)
- Japan: Tokyo, Osaka, Nagoya (Primary for Advanced Power Plants, Petrochemical, Cryogenic)
- China: Shanghai, Guangzhou, Beijing (Key for Power, Petrochemical, Heavy Manufacturing, Infrastructure)
- India: Mumbai, Chennai, Delhi, Bangalore (Local Markets - Major Power, Oil & Gas, Chemical, Offshore Demand)
- South Korea: Seoul, Busan, Ulsan (Primary for Shipbuilding, Petrochemical, Advanced Power, Cryogenic)
- UAE: Dubai, Abu Dhabi, Sharjah (Primary for Oil & Gas, Power Generation, Petrochemical Plants)
- Saudi Arabia: Riyadh, Jeddah, Dammam (Primary for Oil & Gas, Refining, Advanced Power Infrastructure)
- Singapore: Singapore City (Key for Petrochemical, Refinery Hub, Power, Offshore)
- Malaysia: Kuala Lumpur, Johor Bahru (Oil & Gas, Power Plants, Petrochemical)
- Indonesia: Jakarta, Surabaya (Energy, Offshore, Large Industrial Projects)
- Thailand: Bangkok, Laem Chabang (Power, Petrochemical, Offshore)
- Vietnam: Ho Chi Minh City, Hanoi (Energy, Heavy Industrial, Petrochemical)
- Philippines: Manila, Cebu City (Power, Industrial, Offshore)
- Bangladesh: Dhaka, Chittagong (Power, Industrial)
- Hong Kong: Hong Kong (Critical Infrastructure Projects)
- Taiwan: Taipei, Kaohsiung (Petrochemical, Advanced Power)
- Sri Lanka: Colombo, Kandy (Power Plants, Industrial)
- Qatar: Doha, Mesaieed (Oil & Gas, LNG, Petrochemical)
- Kuwait: Kuwait City, Ahmadi (Oil & Gas, Refinery)
- Oman: Muscat, Sohar (Oil & Gas, Industrial, Power)
- Bahrain: Manama, Sitra (Petrochemical, Refining)
- Egypt: Cairo, Alexandria (Oil & Gas, Power, Petrochemical)
- USA: Houston, Los Angeles, New York, Chicago, New Orleans (Primary Market for Oil & Gas EPCs, Power Generation, Petrochemical, Cryogenic)
- Canada: Calgary, Edmonton, Vancouver, Toronto, Montreal (Key for Oil & Gas, Utilities, Major Power Projects, Offshore)
- Mexico: Mexico City, Monterrey, Veracruz (Key for Energy Sector, Refining, Industrial Plants)
- Brazil: São Paulo, Rio de Janeiro, Belo Horizonte (Key for Oil & Gas, Petrochemical, Power, Offshore)
- Argentina: Buenos Aires, Cordoba (Key for Energy, Industrial)
- Colombia: Bogotá, Barranquilla (Oil & Gas, Refining, Power)
- Peru: Lima, Callao (Mining, Energy Infrastructure)
- Chile: Santiago, Valparaíso (Mining, Power)
- South Africa: Johannesburg, Durban, Cape Town, Sasolburg (Key for Power Generation, Mining, Petrochemical)
- Nigeria: Lagos, Port Harcourt, Abuja (Primary for Oil & Gas, Energy Sector, Offshore)
- Algeria: Algiers, Oran (Oil & Gas, Power Generation, Petrochemical)
- Ghana: Accra, Kumasi (Energy, Industrial)
- Kenya: Nairobi, Mombasa (Power, Industrial)
- Australia: Sydney, Melbourne, Perth, Brisbane (Primary for Mining, Oil & Gas, Power Generation, Offshore)
- New Zealand: Auckland, Wellington (Key for Energy, Industrial Projects)
Why Choose Dipti Metal Industries for Your Premium Spiral Wound Gaskets Needs? Your Global Advantage
- Premier Global Manufacturer & Comprehensive Expertise: As a leading global Spiral Wound Gaskets Manufacturer, largest ASME B16.20 certified Stockist, top Flexible Graphite/PTFE SWG Supplier, and best High-Performance Gasket Exporter, Dipti Metal Industries offers unparalleled expertise in producing and supplying a vast range of high-integrity semi-metallic sealing solutions. We guarantee availability for your critical high-pressure and high-temperature projects worldwide. We are a reliable and leading manufacturing and trading partner.
- Uncompromising Quality, Precision, & Traceability: Dipti Metal Industries adheres to ISO 9001 certified processes from raw material sourcing (certified winding metals and fillers) to precision winding and final inspection. We provide full material traceability with EN 10204 3.1 MTCs, guaranteeing every SWG meets stringent ASME B16.20, API 607/6FB, and other international standards for superior integrity and flawless performance in demanding industrial environments. Our rigorous QA includes dimensional accuracy, material verification (PMI), hardness testing, and fire-safe certification where applicable.
- Extensive Product Range & Advanced Custom Fabrication: We offer a truly comprehensive selection of SWG types (R, RIR, CG, CGI), an extensive array of metallic winding materials (Stainless Steel, Duplex, Nickel Alloys, Titanium, Carbon Steel) and filler materials (Flexible Graphite, PTFE, Mica, Ceramic Fiber, CNAF). Our state-of-the-art manufacturing capabilities allow for precision production to all standard dimensions and custom fabrication to your exact drawings and unique project requirements, including very large diameters and specialized designs.
- Expert Technical Consultation & Engineering Support: Decades of accumulated experience in the highly specialized gasket and sealing industry enable our dedicated and highly skilled technical team to provide unparalleled guidance on Spiral Wound Gasket selection. We offer tailored advice on optimal SWG type, winding/filler combination, sizing, pressure/temperature ratings, and compliance (e.g., API 607/6FB, NACE MR0175/ISO 15156), ensuring you acquire the exact, best sealing solution for your most critical applications.
- Robust Worldwide Export & Reliable Supply Chain: As a dedicated worldwide exporter, Dipti Metal Industries efficiently serves a vast and expanding global clientele. We guarantee fast, reliable global delivery with comprehensive documentation support, including customs clearance assistance, ensuring smooth logistics and timely project completion across all continents. We handle all aspects of international shipping with expertise for Spiral Wound Gaskets, including adherence to proper packaging and handling requirements.
- Competitive Pricing & Superior Value Proposition: Leveraging strategic global sourcing partnerships, streamlined manufacturing processes, and highly efficient operations, Dipti Metal Industries consistently delivers premium quality Spiral Wound Gaskets at exceptionally competitive prices. This ensures excellent value for your investment, significantly contributing to optimized project costs and enhanced profitability for our clients without compromising on critical performance, safety, and longevity.
Get a Quote Today for Your Spiral Wound Gasket Requirements!
Are you searching for dependable, high-performance Spiral Wound Gaskets (SWG - Basic, Inner Ring, Outer Ring, Inner/Outer Ring) for your critical industrial applications, including petrochemical, power generation, oil & gas, or chemical processing? Contact Dipti Metal Industries, your expert global spiral wound gasket supplier, manufacturer, and exporter, today to discuss your specific requirements or to request a personalized, custom quote. Our knowledgeable and responsive team is dedicated to providing you with the most effective, safest, and most reliable resilient sealing solutions that guarantee long-term operational excellence, enhanced system integrity, and unparalleled project success in the most demanding environments. We are the best and leading partner for all your needs, offering a large and comprehensive range with top quality.
Price guidance (non-binding): USD 8–6000 per gasket depending on size, style (R/RIR/CG/CGI), winding metal, filler material, standards, and quantity. Final prices are quotation-based.
Spiral Wound Gaskets — Frequently Asked Questions
We offer Basic (Style R), Inner Ring (Style RIR), Outer Ring (Style CG), and Inner & Outer Ring (Style CGI) spiral wound gaskets to suit various flange types and application demands, all manufactured to ASME B16.20 standards.
Winding materials include Stainless Steel (304, 316L, 321, 347), Duplex/Super Duplex, Monel®, Inconel®, Hastelloy®, Titanium, and Carbon Steel. Filler materials include Flexible Graphite, PTFE (Virgin, Expanded), Mica, and Ceramic Fiber. Material choice depends on specific temperature, pressure, and chemical compatibility requirements.
They offer excellent resilience and high recovery under fluctuating pressure/temperature, high pressure/temperature resistance (fire-safe options available), and broad chemical compatibility, providing a robust, leak-free seal. Their unique design also gives them superior blow-out resistance compared to many other gasket types.
Our SWGs are manufactured to ASME B16.20 for metallic gaskets for pipe flanges. Fire-safe designs comply with API 607/6FB. Materials can meet NACE MR0175/ISO 15156 for sour service applications. We also comply with relevant ISO and EN standards.
Yes, many Spiral Wound Gaskets, particularly those with flexible graphite fillers and appropriate metallic windings, are designed and tested to be fire-safe according to standards like API 607/6FB. This ensures they maintain seal integrity during and after exposure to fire, which is critical for safety in hazardous environments.
The filler material significantly impacts SWG performance. Flexible Graphite fillers offer high temperature and chemical resistance, and excellent recovery. PTFE fillers provide superior chemical inertness and purity for corrosive or sensitive applications. Mica fillers are primarily for extreme high-temperature use, while Ceramic Fiber provides very high thermal insulation at extreme temperatures.
